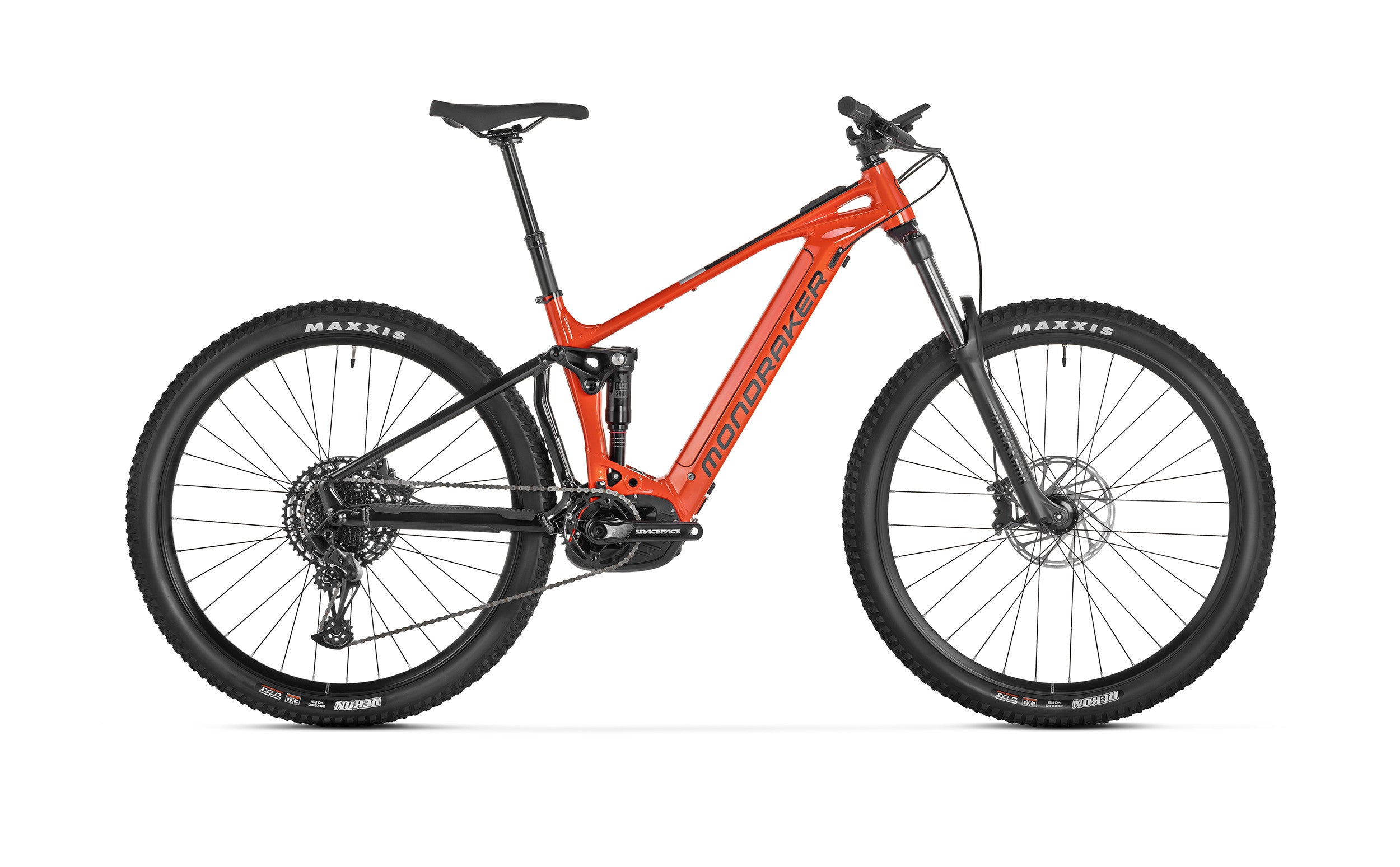

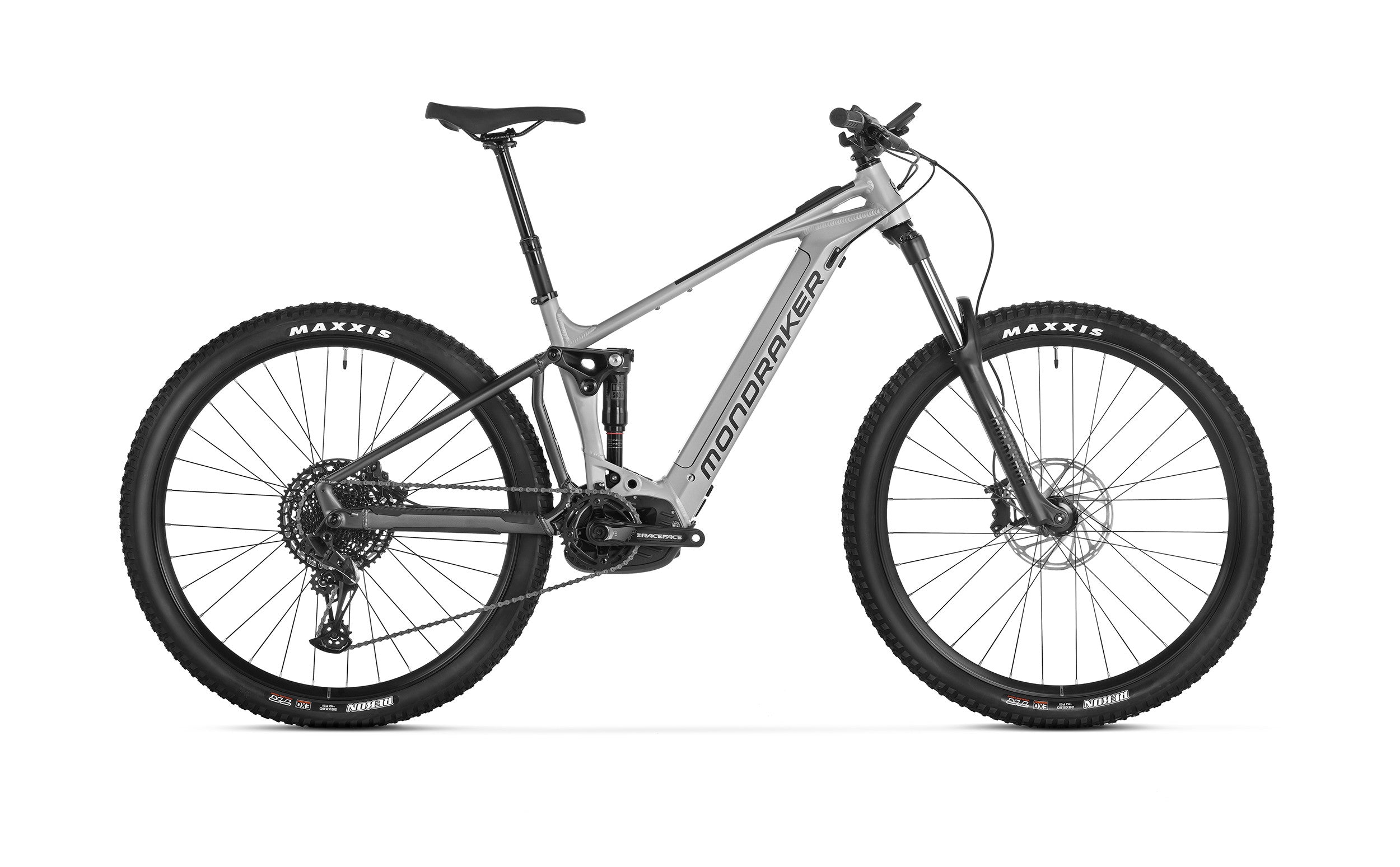

CHASER
150MM
150MM
TRAIL / HYBRID
Ride further, ride faster, and discover more of the places you love. Trail centre, alpine epic, rail trail, or urban commute. Everyday adventure is on the menu with the 150mm Chaser.
FORWARD GEOMETRY
LEARN MORESTEALTH ALLOY
LEARN MOREBOSCH
LEARN MORECOMPONENTS
technical specs
Frame
Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCK
RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock Settings
Light compression, Linear rebound, 1 Token
Fork
RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Twin, 1lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
SADDLE
MDK ebike black
FRONT BRAKE
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
REAR BRAKE
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
BRAKE LEVER
Sram DB8, tool reach adjust, lever pivot bushings
RIMS
Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
SPOKES
Mavic J-bend double butted, contactless lacing
FRONT HUB
Mavic, Boost 15x110mm, IS 6 bolts
REAR HUB
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
FRONT TYRE
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
REAR TYRE
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
CRANKSET
Race Face Aeffect ebike, 165mm
RINGS
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
CHAIN
Sram SX Eagle, 12s, Powerlock
REAR DERAILLEUR
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
SHIFT LEVERS
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
CASSETTE
Sram PG-1210, 11-50T, 12s
DERAILLEUR HANGER
Mondraker M068
WEIGHT
25.4 kg
DISPLAY
Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
MOTOR
Bosch Performance Line CX Cruise (32km/h) GEN4 SMART SYSTEM
BATTERY
Bosch Powertube 625Wh
CHASER
SIZES

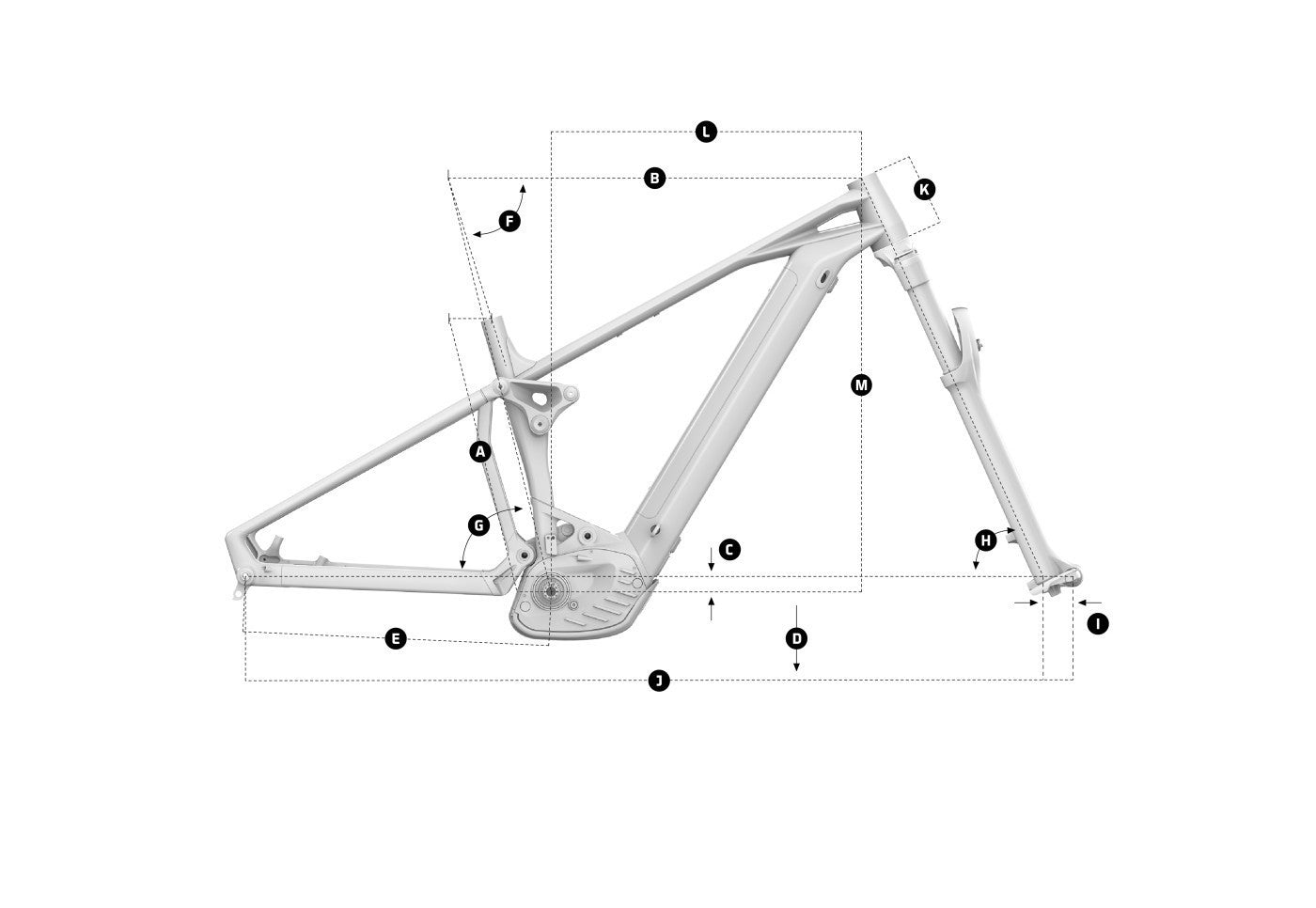

GEOMETRY
FRAME SIZE
|
XL | L | M | S | |
---|---|---|---|---|---|
A | Seattube length | 490mm | 450mm | 420mm | 380mm |
B | Toptube length | 670mm | 650mm | 625mm | 605mm |
C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
G | Effective seattube angle | 76° | 76° | 76° | 76° |
H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
J | Wheelbase | 1285mm | 1265mm | 1245mm | 1225mm |
K | Headtube length | 130mm | 130mm | 110mm | 110mm |
L | Reach | 510mm | 490mm | 470mm | 450mm |
M | Stack | 640mm | 640mm | 622mm | 622mm |
