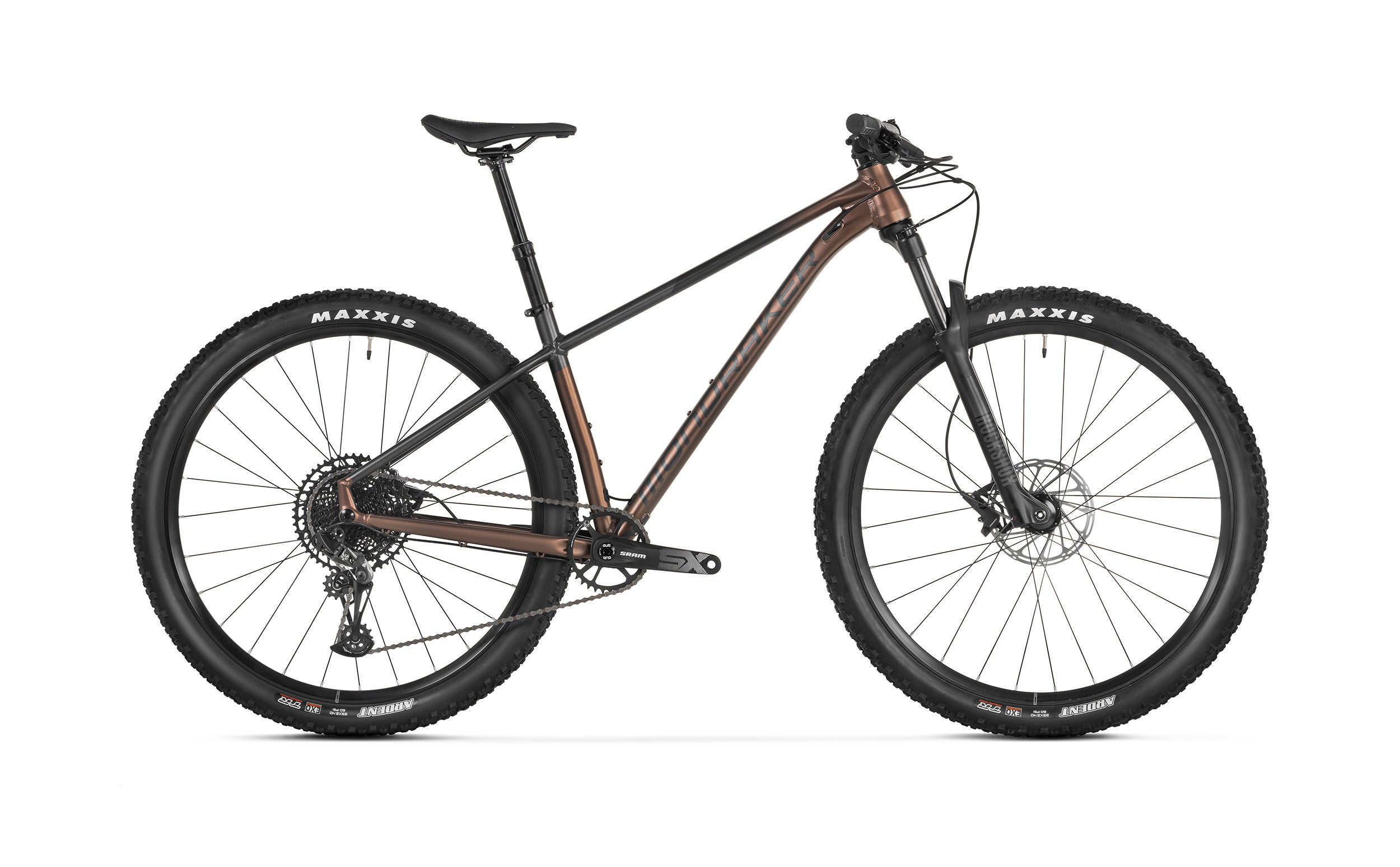

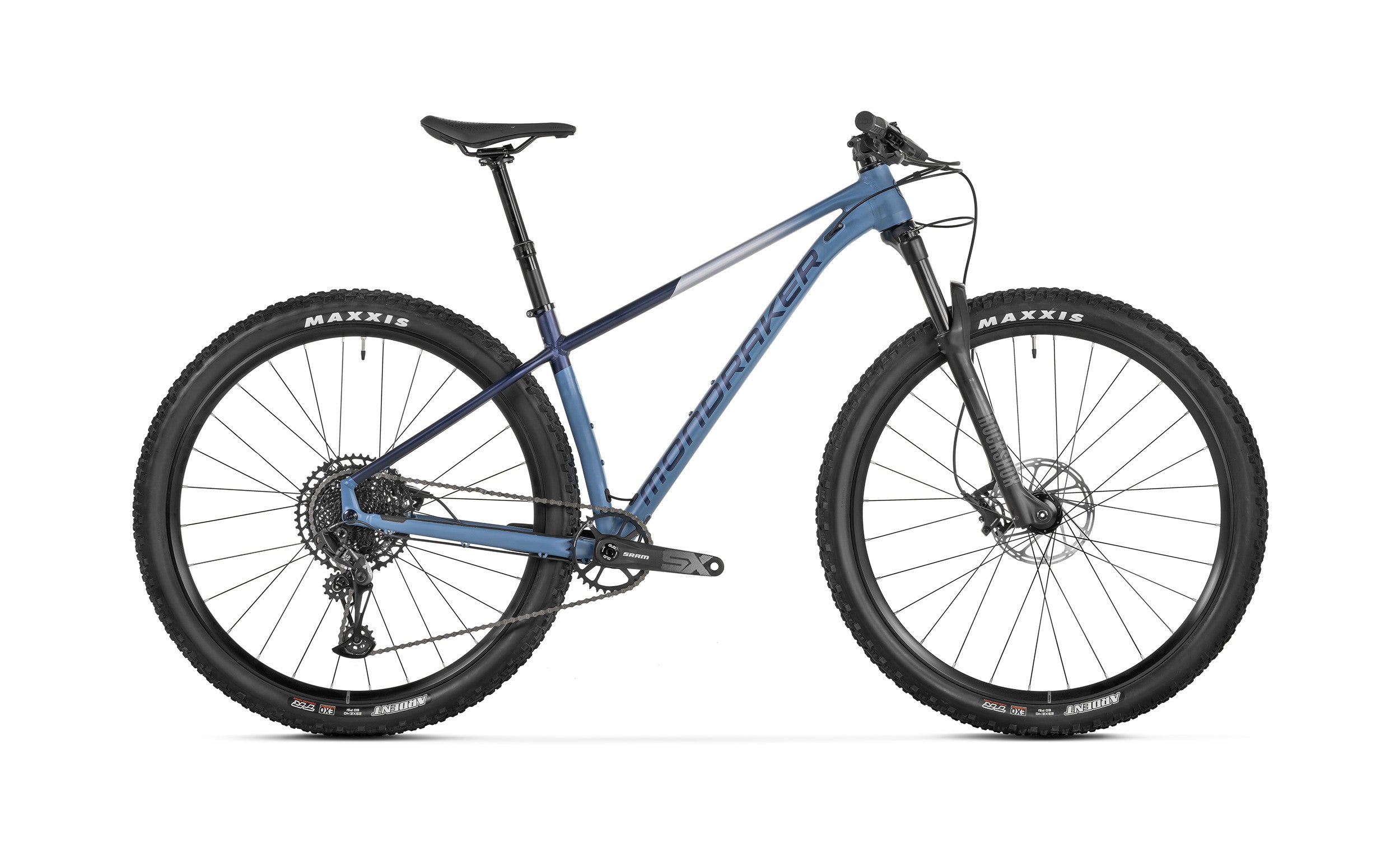

CHRONO DC R
120MM
DOWN COUNTRY / BIKEPACKING
More gravity-focused, and comfortable than your standard XC bike.
Enjoy fatter tyres, 120mm of travel, and versatile geometry. The Chrono is a livelier option than your traditional XC hardtail while being capable enough to spec as the ultimate bike-packing rig. Tackle the Tour Aotearoa, lite XC racing, gravel, trail, or adventure riding, all on one build.
FORWARD GEOMETRY
LEARN MORE
STEALTH ALLOY
LEARN MORECOMPONENTS
technical specs
Frame
Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design
Sizes
S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Fork
RockShox Recon Silver RL Remote 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 42mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload
FORK REMOTE
RockShox PopLoc
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore
GRIPS
Onoff Twin, 1lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever S size: 405x95-125mm, M size: 405x95-125mm, L size: 458x120-150mm, XL size: 458x120-150mm
SADDLE
Mondraker MDK Series, SRX, steel rail
FRONT BRAKE
Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
REAR BRAKE
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
BRAKE LEVER
Sram Level, tooled reach adjust, lever pivot bushings
RIMS
Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes
SPOKES
Mavic J-bend steel round spokes
FRONT HUB
Mavic, Boost 15x110mm, IS 6 bolts
REAR HUB
Mavic ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub
FRONT TYRE
Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
REAR TYRE
Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
CRANKSET
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52
RINGS
34T, steel, X-Sync 2
BOTTOM BRACKET
Sram DUB BSA, sealed bearings, 73mm
CHAIN
Sram SX Eagle, 12s, Powerlock
REAR DERAILLEUR
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
SHIFT LEVERS
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
CASSETTE
Sram PG-1210, 11-50T, 12s
DERAILLEUR HANGER
Mondraker M068
WEIGHT
13.9 kg
CHRONO DC R
SIZES

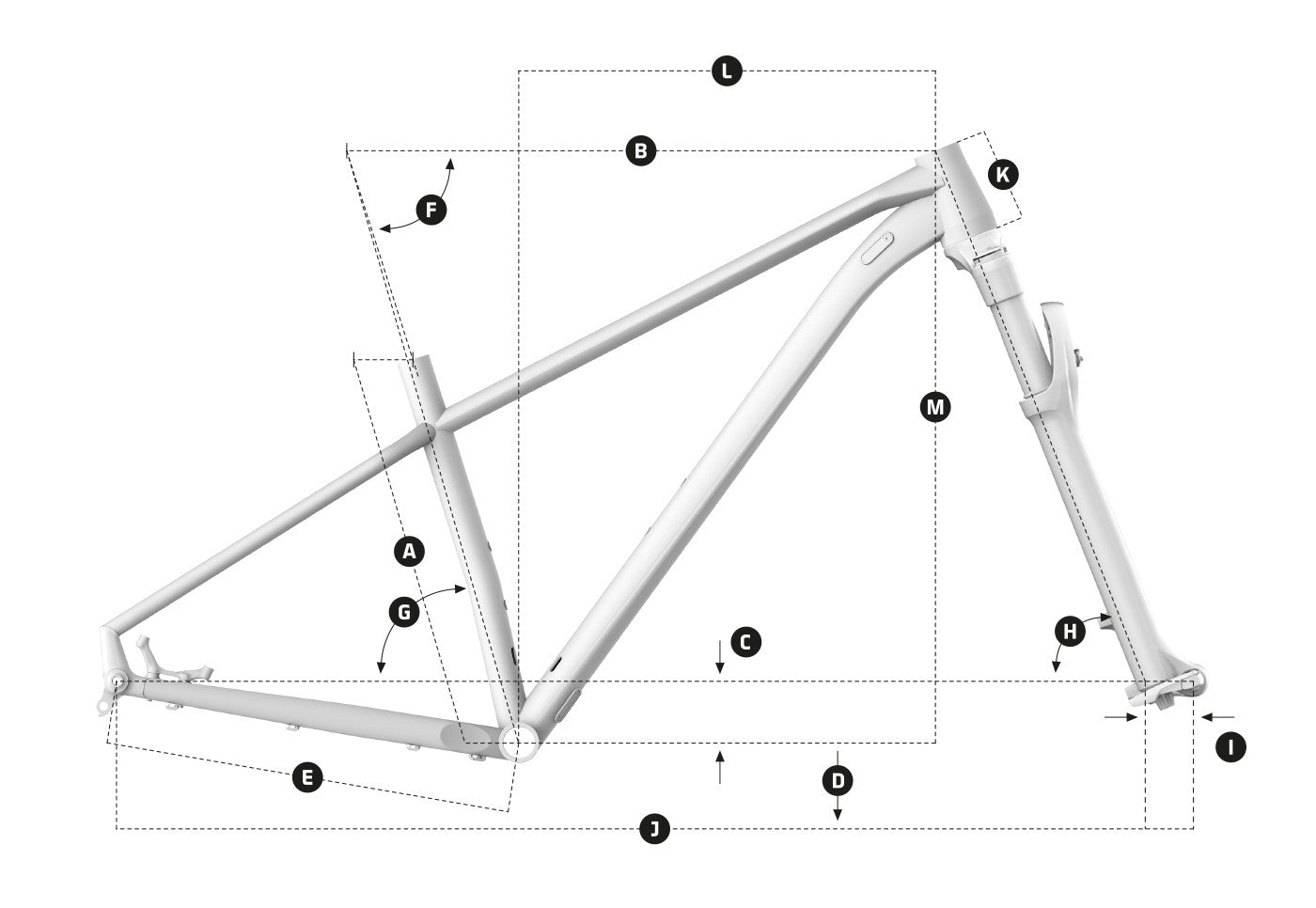

GEOMETRY
|
FRAME SIZE
|
S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 390 mm | 420 mm | 470 mm | 520 mm |
| B | Toptube length | 590 mm | 610 mm | 630 mm | 650 mm |
| C | Bottom bracket drop | 65 mm | 65 mm | 65 mm | 65 mm |
| D | Bottom bracket height | 300 mm | 300 mm | 300 mm | 300 mm |
| E | Chainstay length | 430 mm | 430 mm | 430 mm | 430 mm |
| F | Seat tube angle | 72.5º | 72.5º | 72.5º | 72.5º |
| G | Effective seattube angle | 74.5º | 74.5º | 74.5º | 74.5º |
| H | Headtube angle | 68.5º | 68.5º | 68.5º | 68.5º |
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J | Wheelbase | 1118 mm | 1133 mm | 1160 mm | 1175 mm |
| K | Headtube length | 100 mm | 100 mm | 120 mm | 120 mm |
| L | Reach | 425 mm | 440 mm | 460 mm | 475 mm |
| M | Stack | 624 mm | 624 mm | 642 mm | 642 mm |
