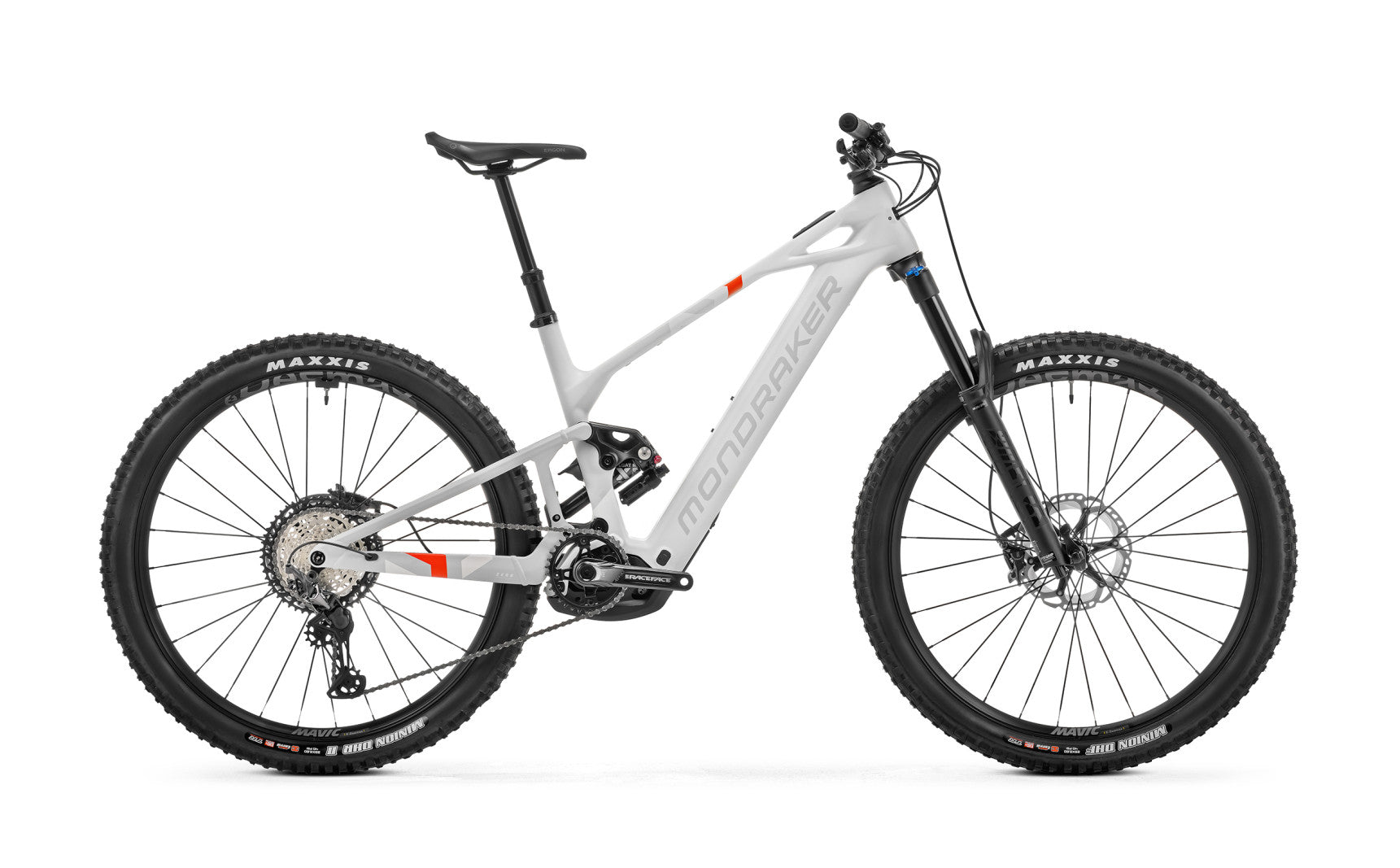

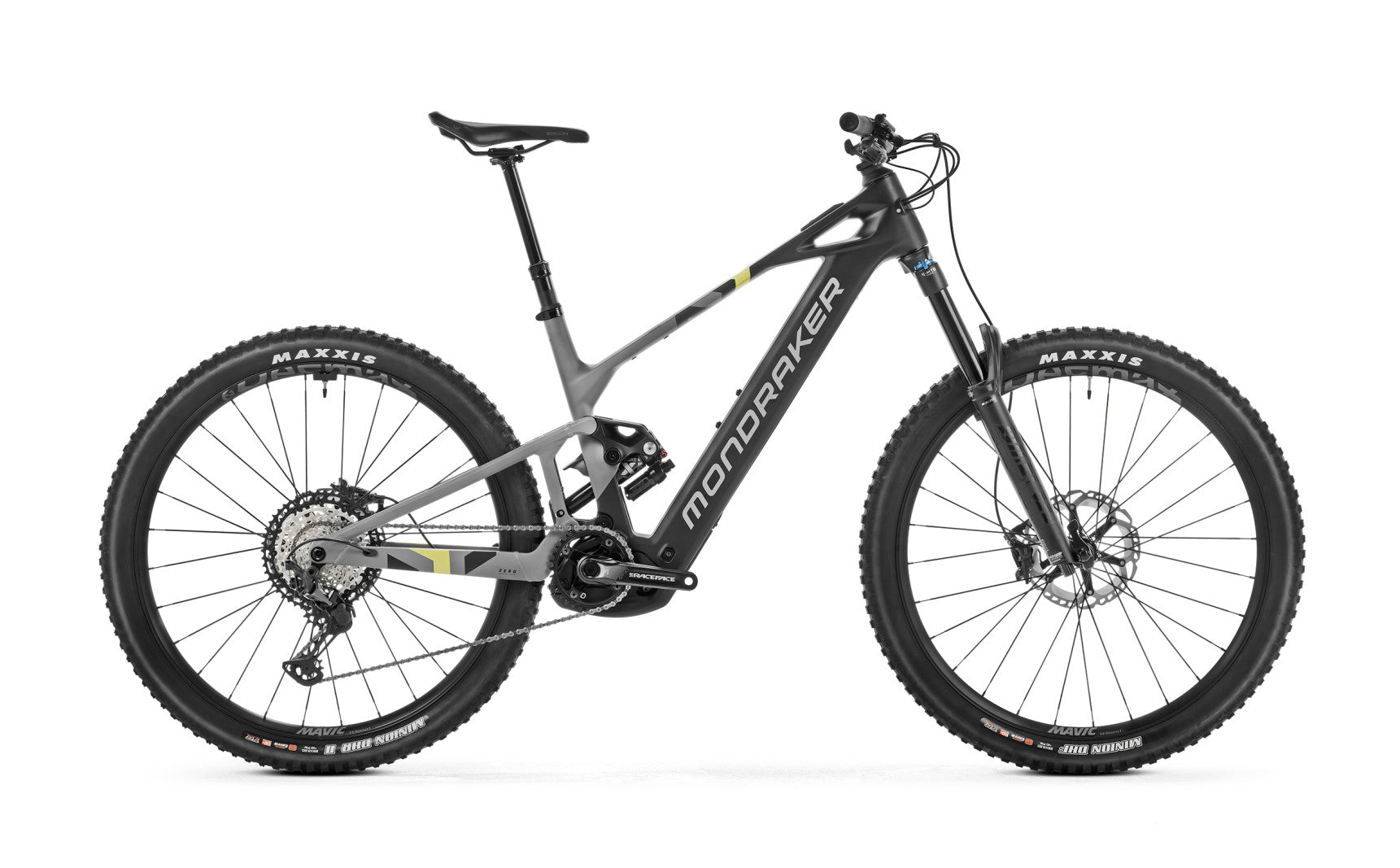

CRAFTY CARBON R
160MM
150MM
ENDURO
Our quiver killer e-bike just got even better. The 160/150mm E-enduro focused Crafty is built to unlock the finest of alpine singletrack or crush the big features at your local bike park. The refined mid-travel platform provides the sweet spot between climbing prowess, and descending confidence. The latest evolution of the most successful e-bike Mondraker has ever made features the new, revamped Bosch CX Performance motor, twinned with more efficient, lighter, and removable 800Wh and 600Wh batteries.
Climb further, ride faster, and enjoy more of all the trails you love
FORWARD GEOMETRY
LEARN MORE
STEALTH CARBON
LEARN MORE
BOSCH
LEARN MORECOMPONENTS
technical specs
Frame
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
REAR SHOCK
Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock Settings
CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Fork
Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise
GRIPS
Onoff Forest, CNC lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
SADDLE
Ergon SM-10
FRONT BRAKE
Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
REAR BRAKE
Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
BRAKE LEVER
Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
RIMS
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
SPOKES
Mavic J-bend double butted, contactless lacing
FRONT HUB
Mavic, Boost 15x110mm, IS 6 bolts
REAR HUB
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub
FRONT TYRE
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
REAR TYRE
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
CRANKSET
Race Face Aeffect-R ebike, 160mm
RINGS
Race Face, 34T, steel, direct mount
CHAIN
Shimano XT M8100, 12s
REAR DERAILLEUR
Shimano XT M8100, SGS, Shadow+
SHIFT LEVERS
Shimano XT M8100, Rapid Fire Plus, 12s
CASSETTE
Shimano XT M8100 10-51T Hyperglide+, 12s
DERAILLEUR HANGER
Sram UDH
WEIGHT
23.9 kg
DISPLAY
Purion 400 / Bosch Mini Remote / Bosch System Controller
MOTOR
New Bosch Performance Line CX (32Km/h) SMART SYSTEM (BDU384Y)
BATTERY
Bosch Powertube 800Wh
CRAFTY CARBON R
PRE ORDER - DUE OCTOBER 2025
SIZES

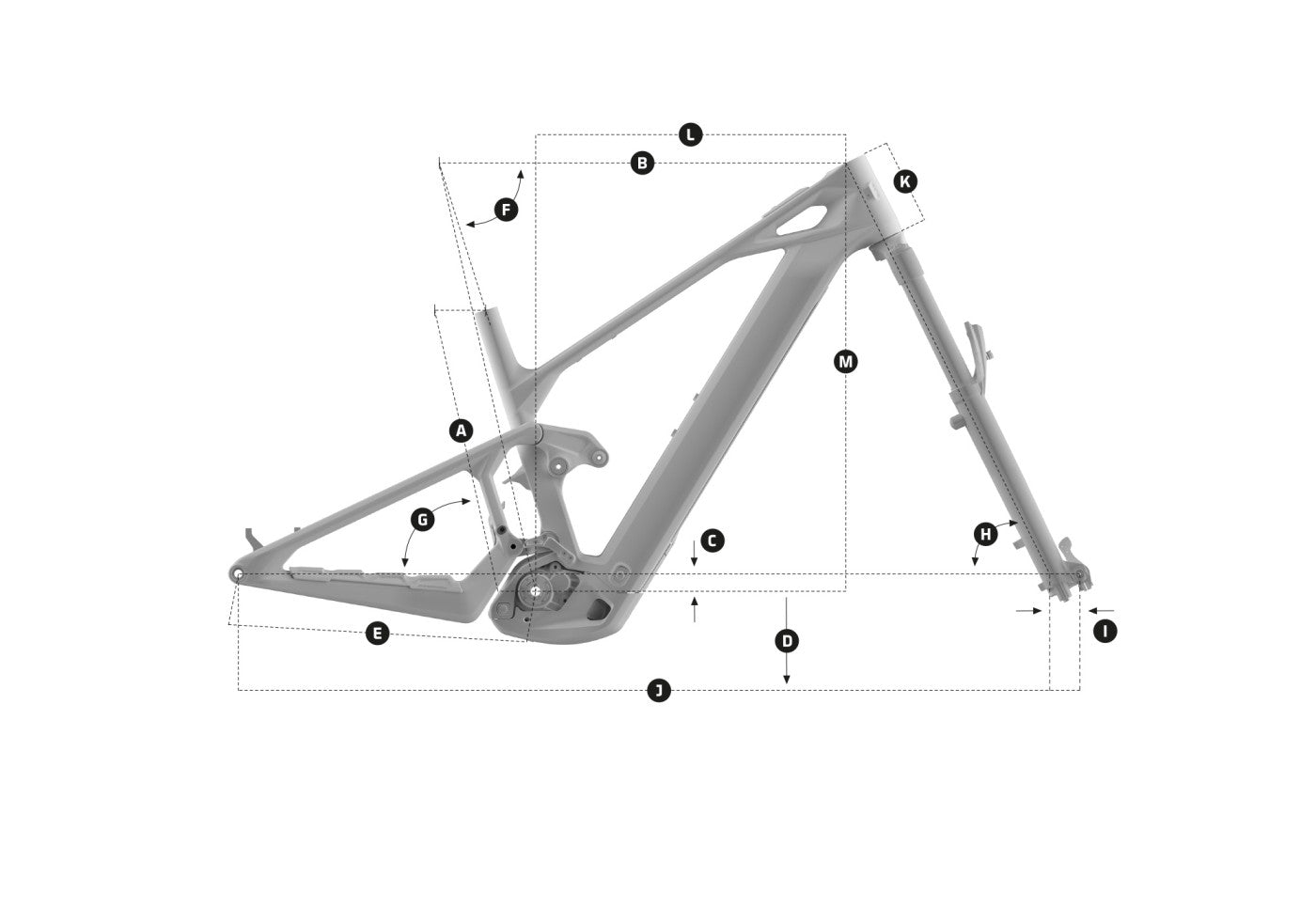

GEOMETRY
|
Frame size
|
S [Std/Low] | M [Std/Low] | M/L [Std/Low] | L [Std/Low] | XL [Std/Low] | |
|---|---|---|---|---|---|---|
| A | Seattube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B | Toptube length | 581 mm/582 mm | 596 mm/597 mm | 618 mm/619 mm | 640 mm/641 mm | 662 mm/663 mm |
| C | Bottom bracket drop | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm |
| D | Bottom bracket height | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm |
| E | Chainstay length | 455 mm/456 mm | 455 mm/456 mm | 455 mm/456 mm | 465 mm/466 mm | 465 mm/466 mm |
| F | Seat tube angle | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° |
| G | Effective seattube angle | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° |
| H | Headtube angle | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm/44 mm | 44 mm | 44 mm/44 mm |
| J | Wheelbase | 1240 mm/1241 mm | 1255 mm/1256 mm | 1280 mm/1281 mm | 1314 mm/1315 mm | 1338 mm/1339 mm |
| K | Headtube length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L | Reach | 445 mm/441 mm | 460 mm/456 mm | 480 mm/476 mm | 500 mm/496 mm | 520 mm/516 mm |
| M | Stack | 638 mm/641 mm | 638 mm/641 mm | 647 mm/650 mm | 656 mm/659 mm | 665 mm/668 mm |
