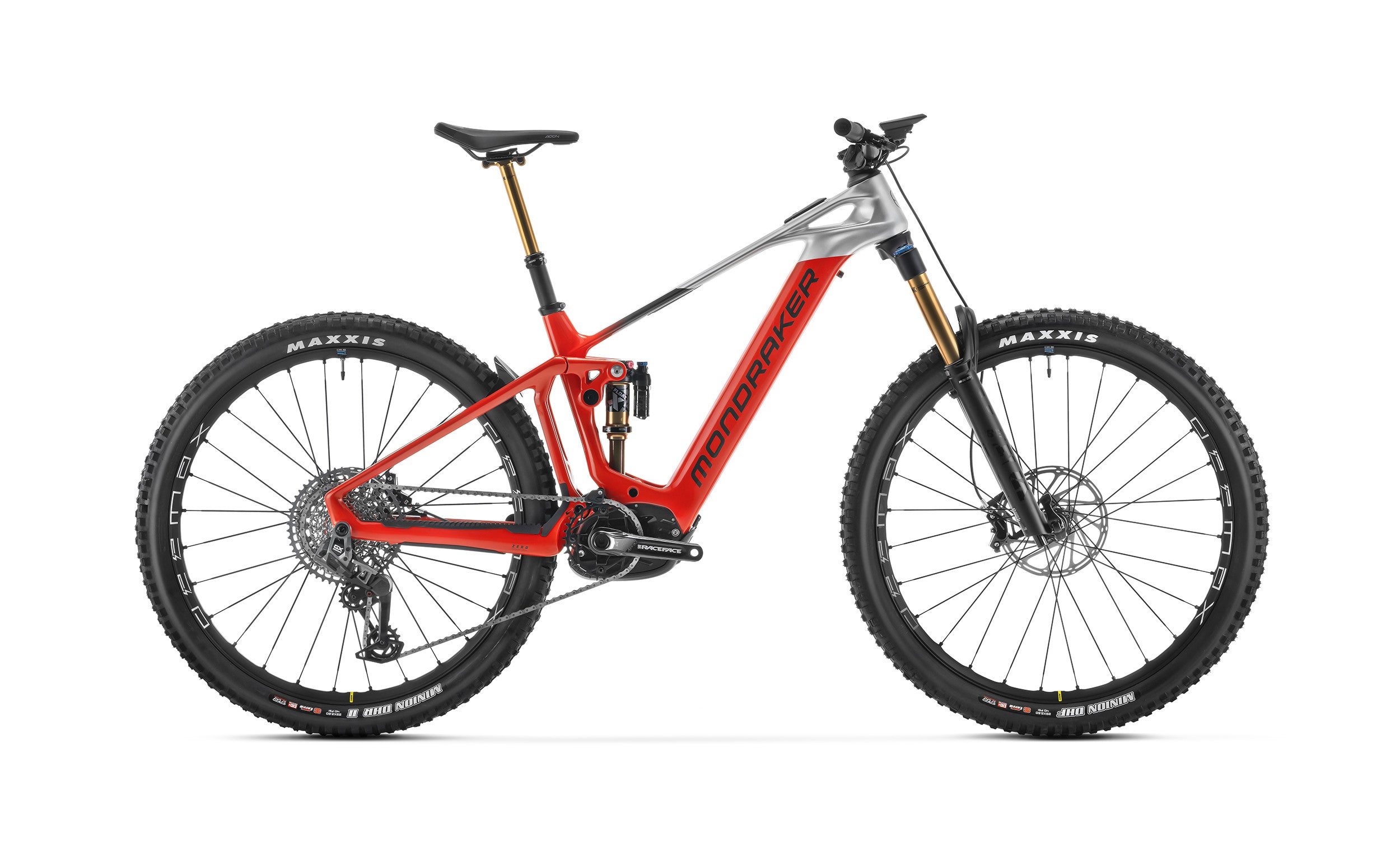

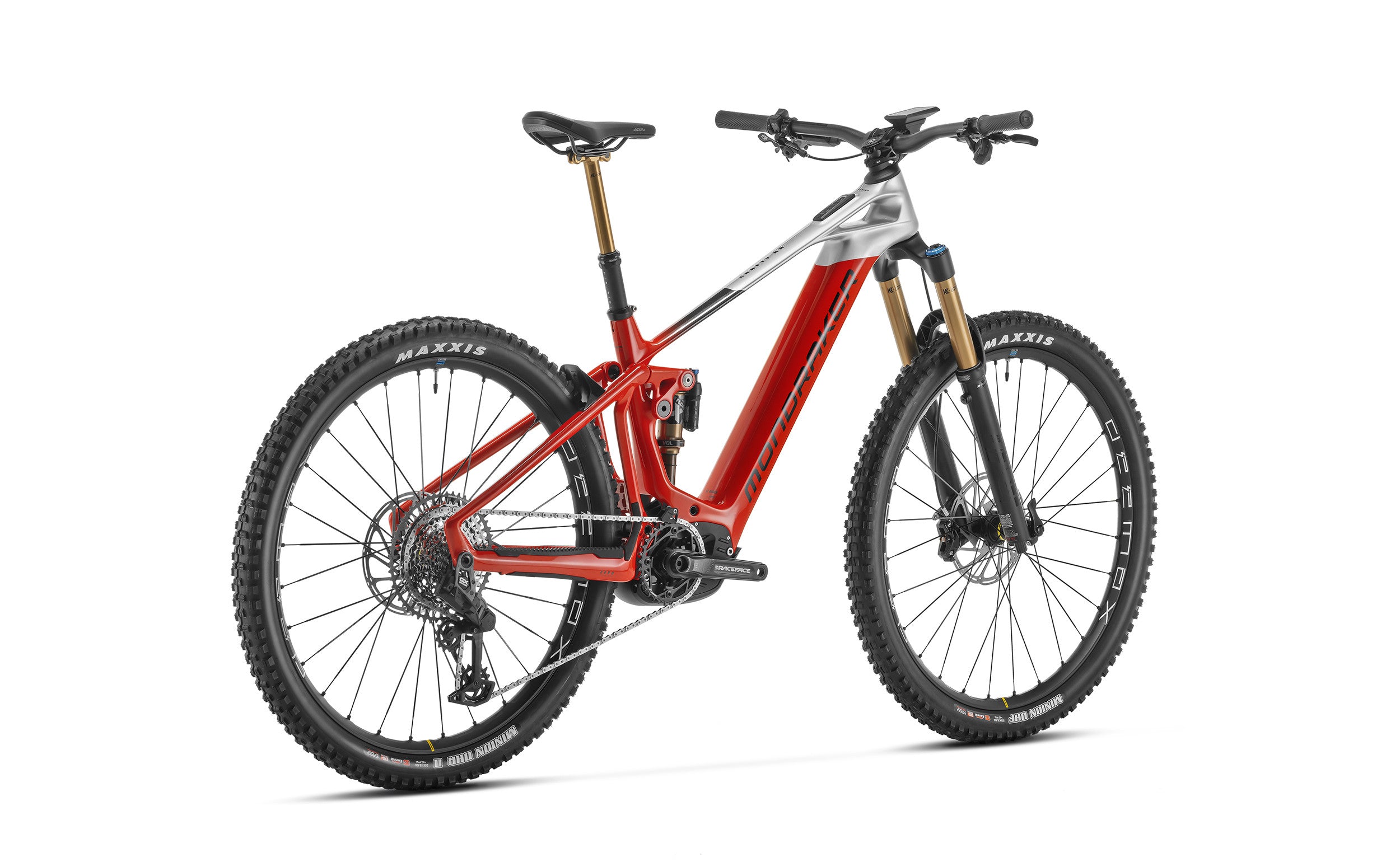

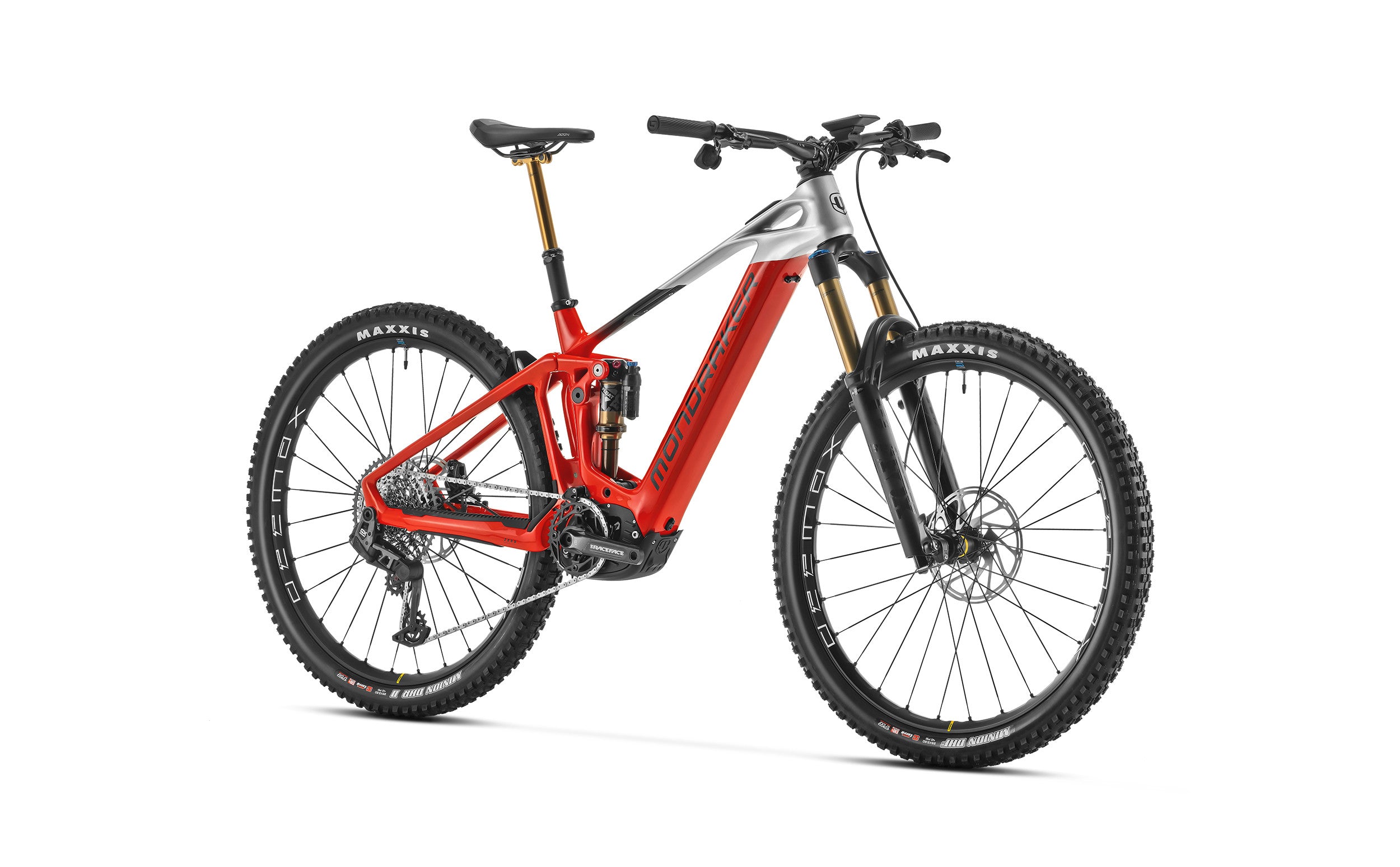

CRAFTY CARBON RR
160MM
150MM
ENDURO
The one bike to ride it all. Our 160/150mm E-enduro-focused Crafty is built to unlock the finest of alpine singletrack or crush the big features at your local bike park. The sweet spot between climbing agility and descending ability. Climb further, descend faster, and enjoy more of the trails you love.
FORWARD GEOMETRY
LEARN MORE
STEALTH CARBON
LEARN MORE
BOSCH
LEARN MORECOMPONENTS
technical specs
Frame
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCK
Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock Settings
Medium compression, medium rebound, air volume spacer 0.2
Fork
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Desert, 1lock-on, 135mm
SEATPOST
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
SADDLE
FIZIK Terra Aidon X5 145mm
FRONT BRAKE
Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
REAR BRAKE
Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
BRAKE LEVER
Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
RIMS
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
SPOKES
Mavic straight-pull double butted, contactless lacing
FRONT HUB
Mavic, Boost 15x110mm, IS 6 bolts
REAR HUB
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
FRONT TYRE
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
REAR TYRE
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
CRANKSET
Race Face Aeffect ebike, 165mm
RINGS
Sram T-Type 34T, steel, narrow-wide, 104 BCD
CHAIN
Sram GX Eagle T-Type, 12s, Powerlock
REAR DERAILLEUR
Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
SHIFT LEVERS
Sram Eagle AXS Pod MMX, 12s
CASSETTE
Sram XS-1275, 10-52T, T-Type, 12s
WEIGHT
23.7 kg
DISPLAY
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
MOTOR
Bosch Performance Line CX Cruise (32km/h) GEN4 SMART SYSTEM
BATTERY
Bosch Powertube 750Wh
CRAFTY CARBON RR
SIZES

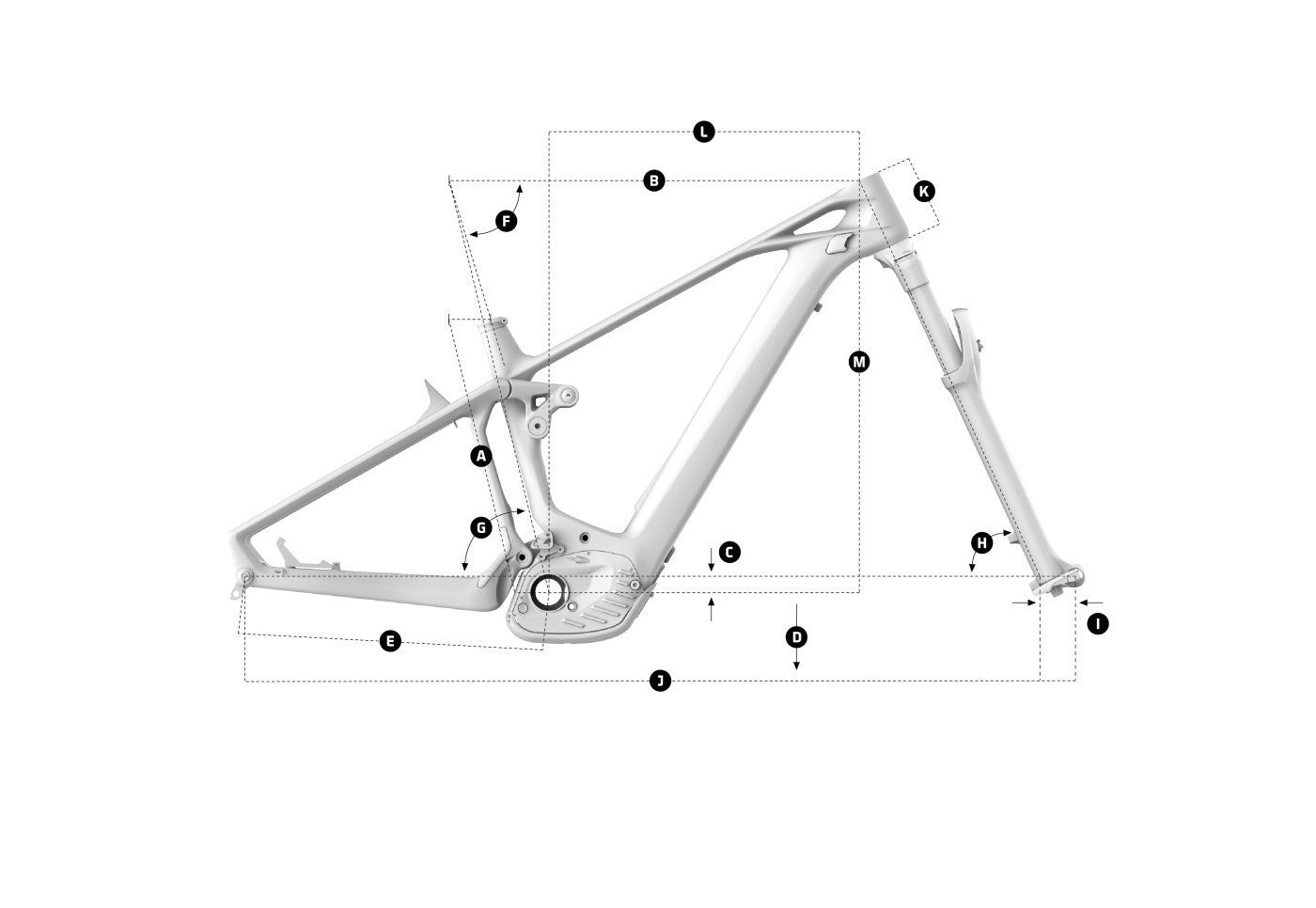

GEOMETRY
|
FRAME SIZE
|
S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 380 mm | 420 mm | 450 mm | 480 mm |
| B | Toptube length | 615 mm | 635 mm | 660 mm | 680 mm |
| C | Bottom bracket drop | -17 mm | -17 mm | -17 mm | -17 mm |
| D | Bottom bracket height | 358 mm | 358 mm | 358 mm | 358 mm |
| E | Chainstay length | 455 mm | 455 mm | 455 mm | 455 mm |
| F | Seat tube angle | 72,5° | 72,5° | 72,5° | 72,5° |
| G | Effective seattube angle | 75° | 75° | 75° | 75° |
| H | Headtube angle | 64,5° | 64,5° | 64,5° | 64,5° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J | Wheelbase | 1235 mm | 1255 mm | 1280 mm | 1300 mm |
| K | Headtube length | 110mm | 110mm | 130 mm | 130 mm |
| L | Reach | 440 mm | 460 mm | 480 mm | 500 mm |
| M | Stack | 632 mm | 632 mm | 650 mm | 650 mm |
