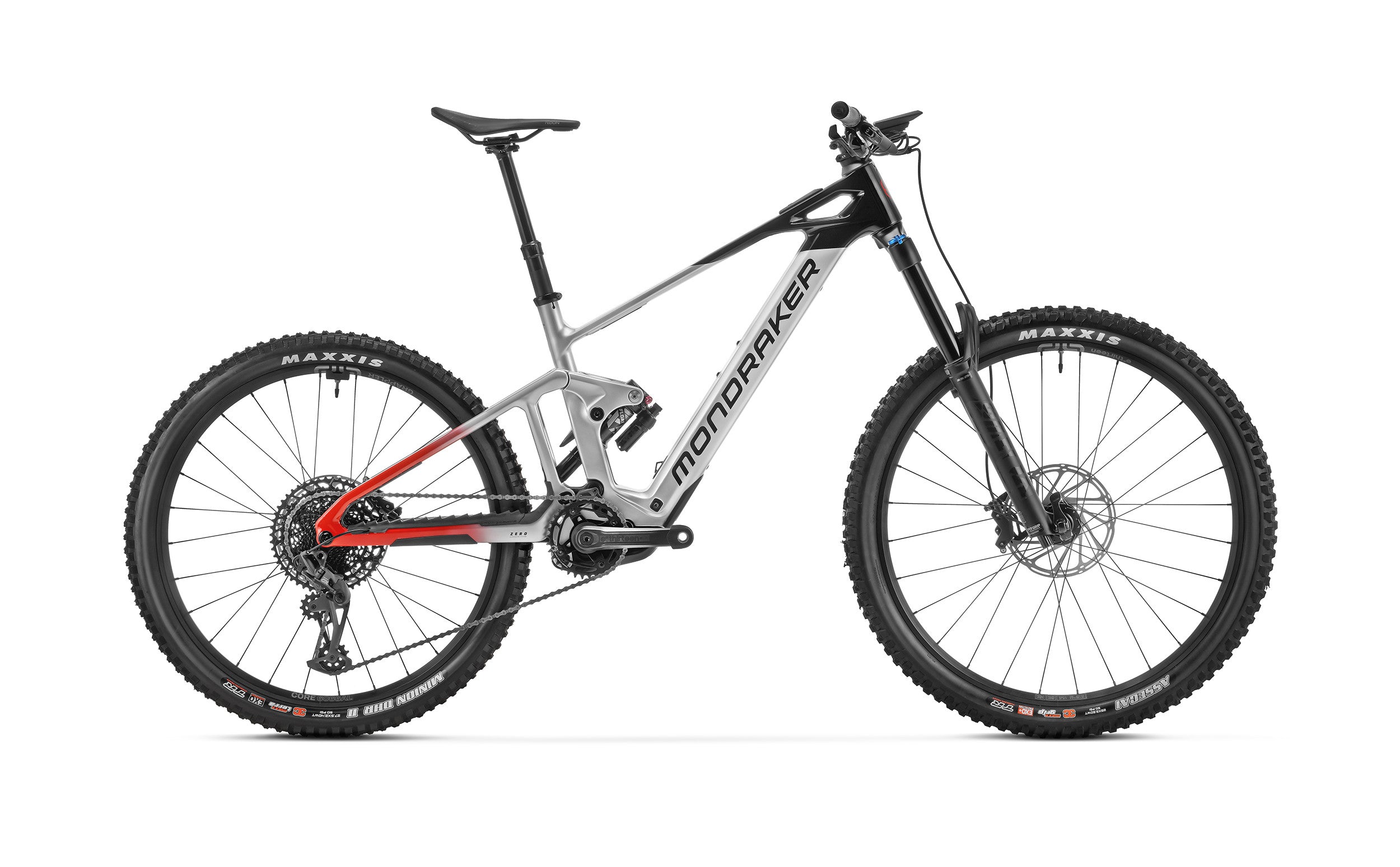

DUNE R
170mm
165mm
GRAVITY ENDURO / BIKEPARK
Enduro agility meets sleek electric power! The new DUNE is here and it's ready for anything. Long travel enduro prowess to bolt up the climbs and thunder down the descents. Enjoy 160mm of ultra-capable and bike-park-ready Mondraker engineering, powered by a super-light Bosch electric motor.
FORWARD GEOMETRY
LEARN MORESTEALTH CARBON
LEARN MOREBOSCH
LEARN MORECOMPONENTS
technical specs
Frame
Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCK
Fox Float X Performance EVOL, 205x65mm.
Shock Settings
Medium compression, medium rebound, air volume spacer 0.4
Fork
FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Desert, 1lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
SADDLE
Fizik Terra Aidon Slim X5
FRONT BRAKE
Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
REAR BRAKE
Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
BRAKE LEVER
Sram DB8, tool reach adjust, lever pivot bushings
RIMS
e*thirteen Grappler Core, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
SPOKES
e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
FRONT HUB
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
REAR HUB
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
FRONT TYRE
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
REAR TYRE
Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
CRANKSET
E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
RINGS
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
CHAIN
Sram NX Eagle, 12s, Powerlock
REAR DERAILLEUR
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERS
Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
CASSETTE
Sram PG-1230, 11-50T, 12s
DERAILLEUR HANGER
Sram UDH
WEIGHT
19,9 kg
DISPLAY
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
MOTOR
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
BATTERY
Bosch Compact Powertube 400Wh
DUNE R
SIZES

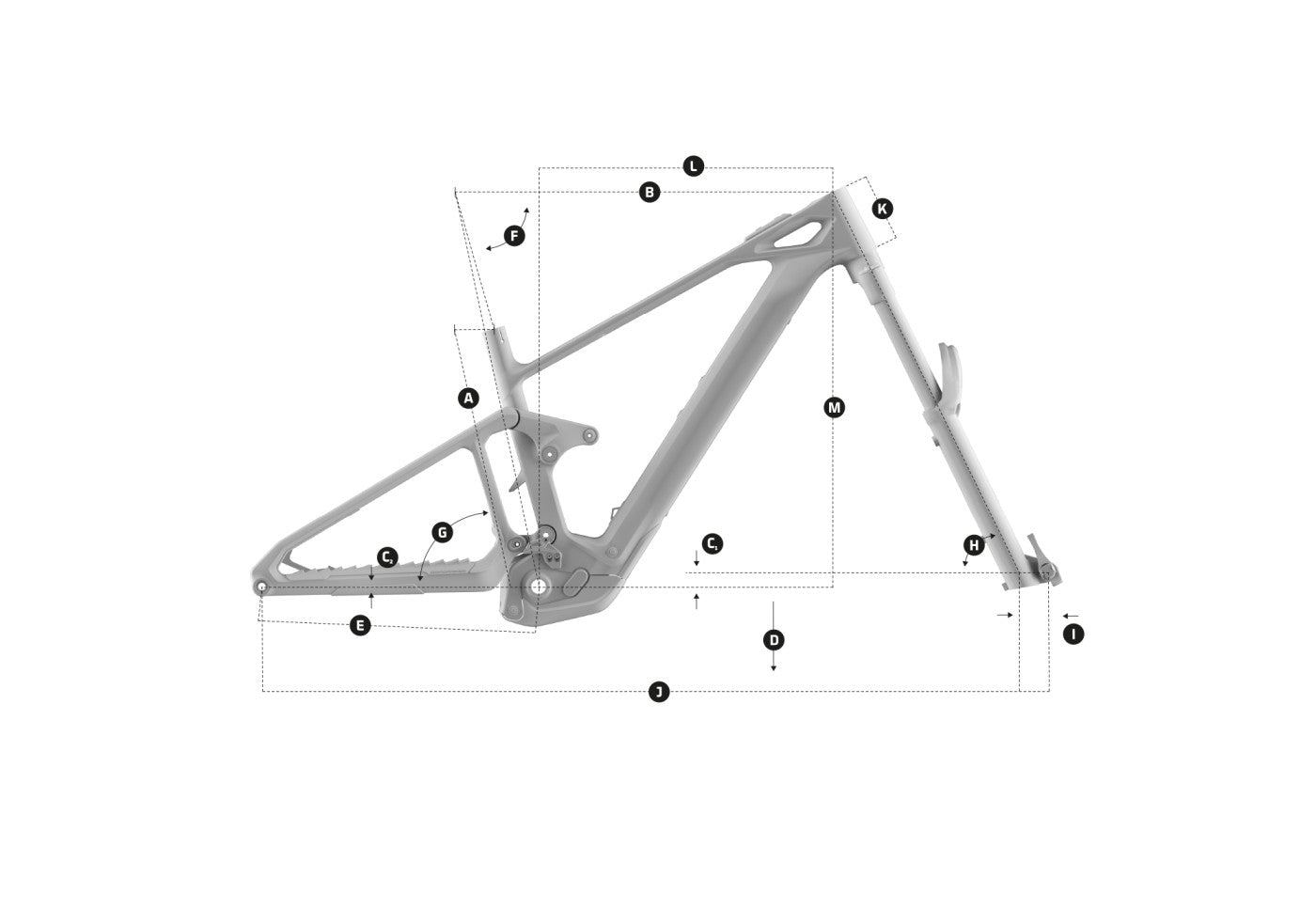

GEOMETRY
FRAME SIZE
|
S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 380mm | 420mm | 450mm | 490mm |
B | Toptube length | 600mm | 620mm | 645mm | 665mm |
C | Bottom bracket drop | -21/0mm | -21/0mm | -21/0mm | -21/0mm |
D | Bottom bracket height | 352mm | 352mm | 352mm | 352mm |
E | Chainstay length | 445mm | 445 mm | 445mm | 445mm |
F | Seat tube angle | 74,0º | 74,0º | 74,0º | 74,0º |
G | Effective seattube angle | 77,5° | 77,5° | 77,5° | 77,5° |
H | Headtube angle | 64º | 64º | 64º | 64º |
I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
J | Wheelbase | 1232mm | 1260mm | 1285mm | 1309mm |
K | Headtube length | 100mm | 110mm | 130mm | 140mm |
L | Reach | 445mm | 465mm | 485mm | 505mm |
M | Stack | 621mm | 630mm | 648mm | 658mm |
