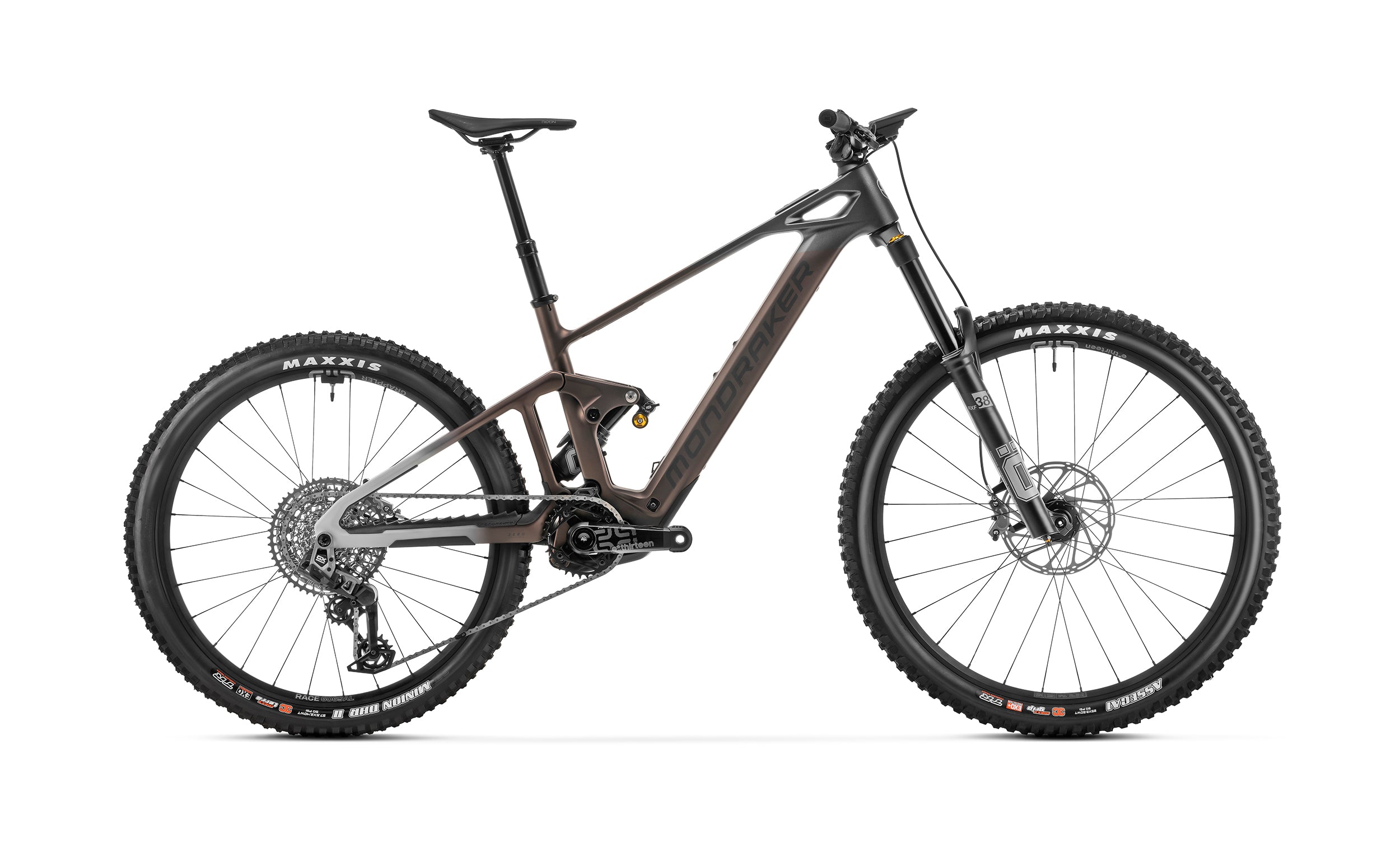

DUNE RR

170/180mm

165mm

GRAVITY ENDURO / BIKEPARK

Enduro agility meets sleek electric power! The new DUNE is here and it's ready for anything. Long travel enduro prowess to bolt up the climbs and thunder down the descents. Enjoy 160mm of ultra-capable and bike-park-ready Mondraker engineering, powered by a super-light Bosch electric motor.

PRE-ORDER NOW THROUGH YOUR LOCAL MONDRAKER DEALER | DUE SEPTEMBER 2024

FORWARD GEOMETRY

LEARN MORE

STEALTH CARBON

LEARN MORE

COMPONENTS

technical specs

Frame

Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

REAR SHOCK

Fox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings

Shock Settings

C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)

Fork

C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)

Headset

Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing

Stem

Onoff Krypton FG 30mm, CNC, 31.8mm barbore

Handlebar

Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS

Onoff Desert, 1lock-on, 135mm

SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

SADDLE

Fizik Terra Aidon Slim X5, 145mm

FRONT BRAKE

Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

REAR BRAKE

Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

BRAKE LEVER

Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

RIMS

e*thirteen Grappler Race, Hookless 6069 Welded Aluminum
30mm internal width, tubeless ready, 28F / 32R spokes 29 front, 27.5 rear

SPOKES

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

FRONT HUB

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

REAR HUB

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

FRONT TYRE

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MaxxGrip compound, EXO+ casing, 60TPI, folding bead

REAR TYRE

Maxxis Minion DHR II 27.5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead

CRANKSET

E.13 E*Spec Plus, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm

RINGS

Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55

CHAIN

Sram GX Eagle T-Type, 12s, Powerlock

REAR DERAILLEUR

Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s

SHIFT LEVERS

Sram Eagle AXS Pod MMX, 12s

CASSETTE

Sram XS-1275, 10-52T, T-Type, 12s

DISPLAY

Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

MOTOR

Bosch Performance Line SX (32Km/h) GEN4 SMART SYSTEM Diagonal, Wide

BATTERY

Bosch Compact Powertube 400Wh

DUNE RR

DUNE RR

Sale price$19,995.00
Colour:Bronze / Vortex Grey / Frog Grey
Size:S

SIZES

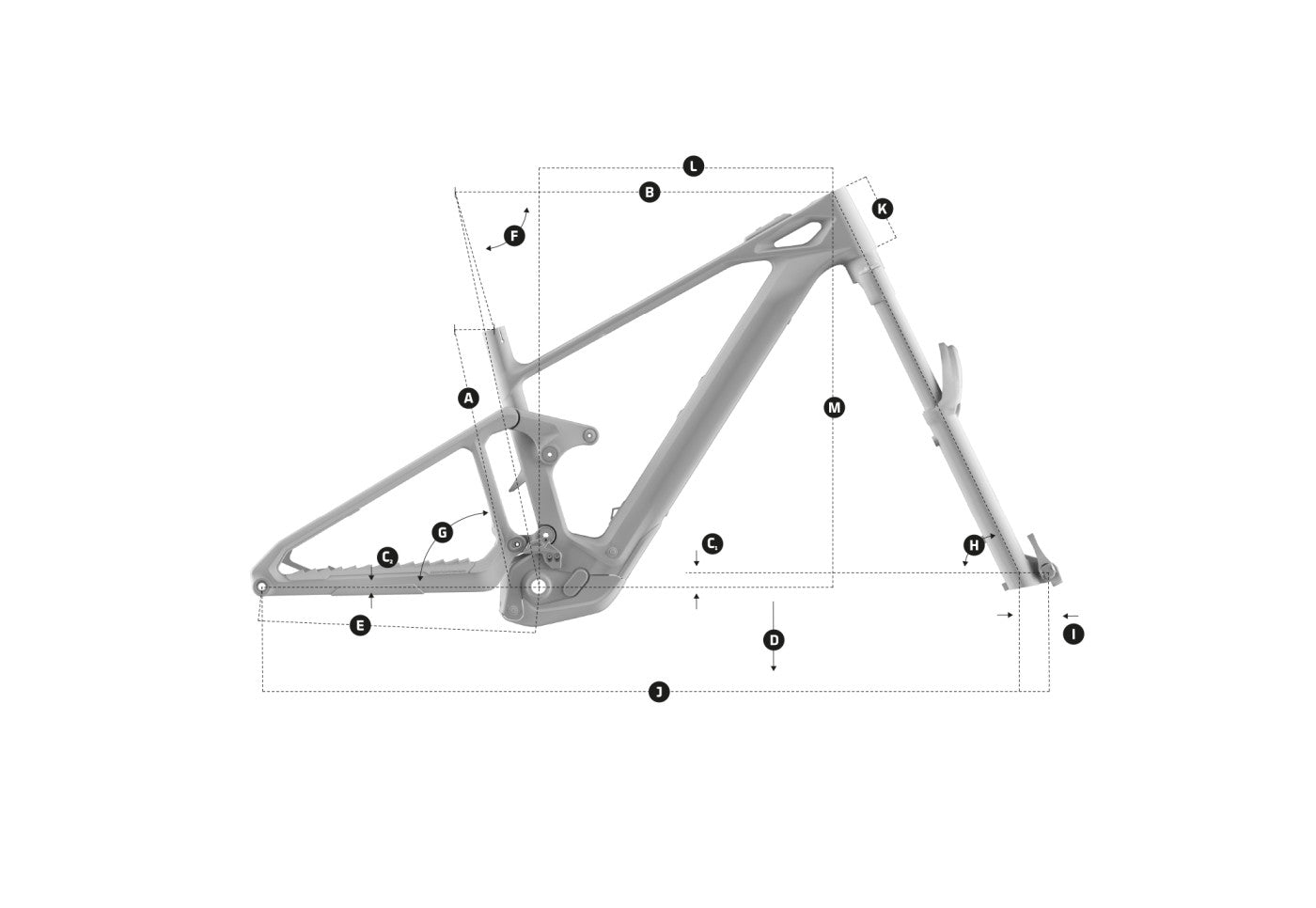

GEOMETRY


FRAME SIZE
S M L XL
A Seattube length 380mm 420mm 450mm 490mm
B Toptube length 600mm 620mm 645mm 665mm
C Bottom bracket drop -21/0mm -21/0mm -21/0mm -21/0mm
D Bottom bracket height 352mm 352mm 352mm 352mm
E Chainstay length 445mm 445 mm 445mm 445mm
F Seat tube angle 74,0º 74,0º 74,0º 74,0º
G Effective seattube angle 77,5° 77,5° 77,5° 77,5°
H Headtube angle 64º 64º 64º 64º
I Fork Offset 44mm 44mm 44mm 44mm
J Wheelbase 1232mm 1260mm 1285mm 1309mm
K Headtube length 100mm 110mm 130mm 140mm
L Reach 445mm 465mm 485mm 505mm
M Stack 621mm 630mm 648mm 658mm
