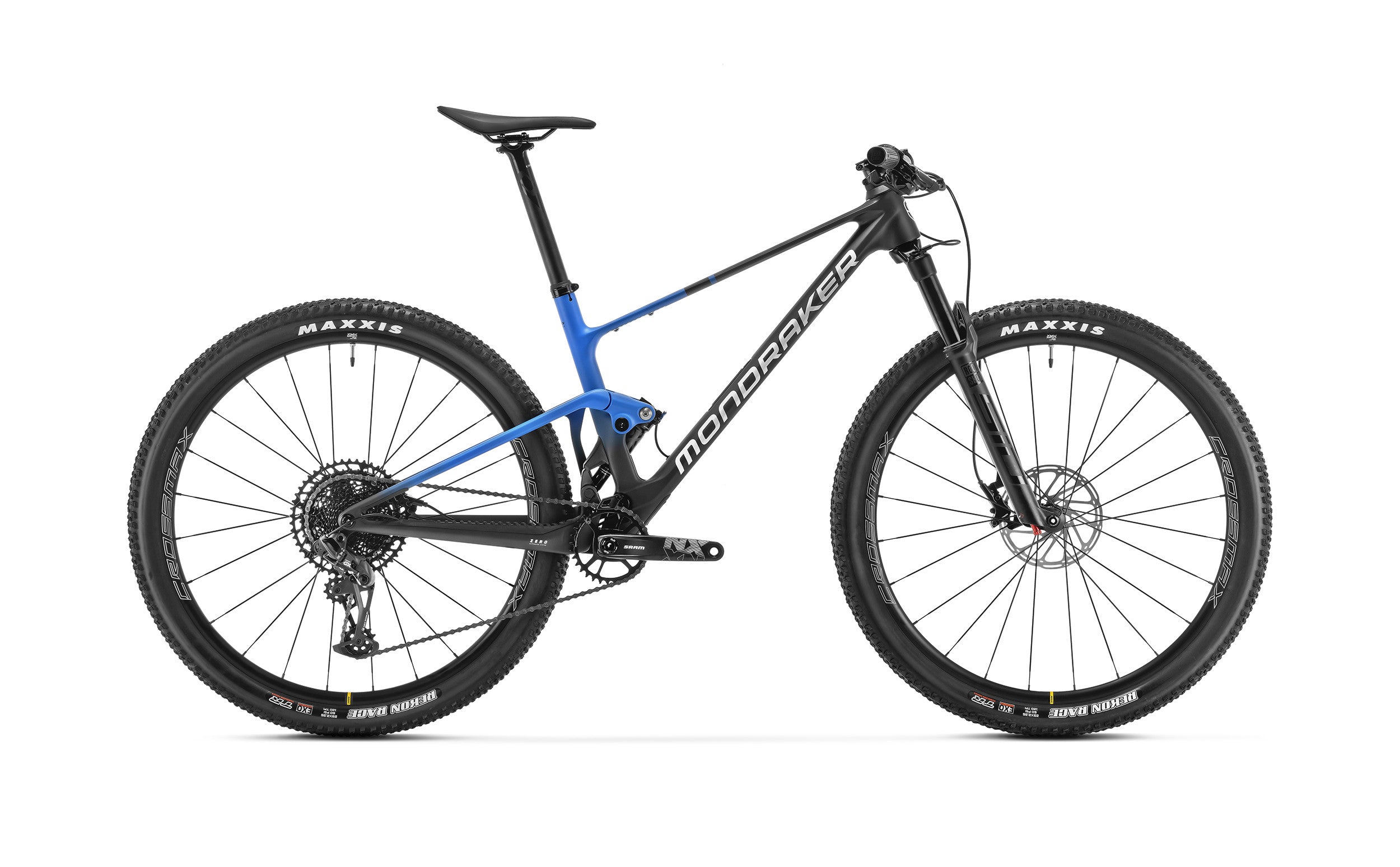

F PODIUM
120MM
115MM
CROSS COUNTRY
The Ultimate XC Weapon. Designed by our best engineers, built using our most refined carbon, and ridden by some of the fastest cross-country racers in the world. The F-Podium is the lightest, stiffest, and fastest full-suspension XC bike we’ve ever produced.
FORWARD GEOMETRY
LEARN MORE
STEALTH CARBON
LEARN MORE
ZERO SUSPENSION
LEARN MORECOMPONENTS
technical specs
Frame
F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
Sizes
S: 410mm / M: 440mm / L: 470mm / XL: 500mm
REAR SHOCK
Rockshox SID Luxe 3P Remote in Pull DebonAir, 165x45mm. Settings: 3 position remote, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS
Medium compression, medium rebound, Lockout 430, 1 Token
Fork
Rockshox SID Base 3P Remote 29, 120mm, DebonAir, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: 3 position remote, Low-speed rebound, air preload
FORK REMOTE
RockShox TwistLoc Base FullSprint 125 B1 3 Position (7mm + 7mm), Twist to lock, Twist to unlock
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
GRIPS
Rock Shox Twistloc grips
SEATPOST
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
SADDLE
Fizik Vento Argo X5
FRONT BRAKE
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
REAR BRAKE
Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
BRAKE LEVER
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
RIMS
Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes
SPOKES
Mavic straight-pull double butted, contactless lacing
FRONT HUB
Mavic, Boost 15x110mm, IS 6 bolts
REAR HUB
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
FRONT TYRE
Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
REAR TYRE
Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
CRANKSET
Sram NX Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55
RINGS
34T, steel, X-Sync 2
BOTTOM BRACKET
Sram DUB BSA, sealed bearings, 73mm
CHAIN
Sram SX Eagle, 12s, Powerlock
REAR DERAILLEUR
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERS
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
CASSETTE
Sram PG-1230, 11-50T, 12s
DERAILLEUR HANGER
Sram UDH
WEIGHT
12,2 kg
F-PODIUM
SIZES

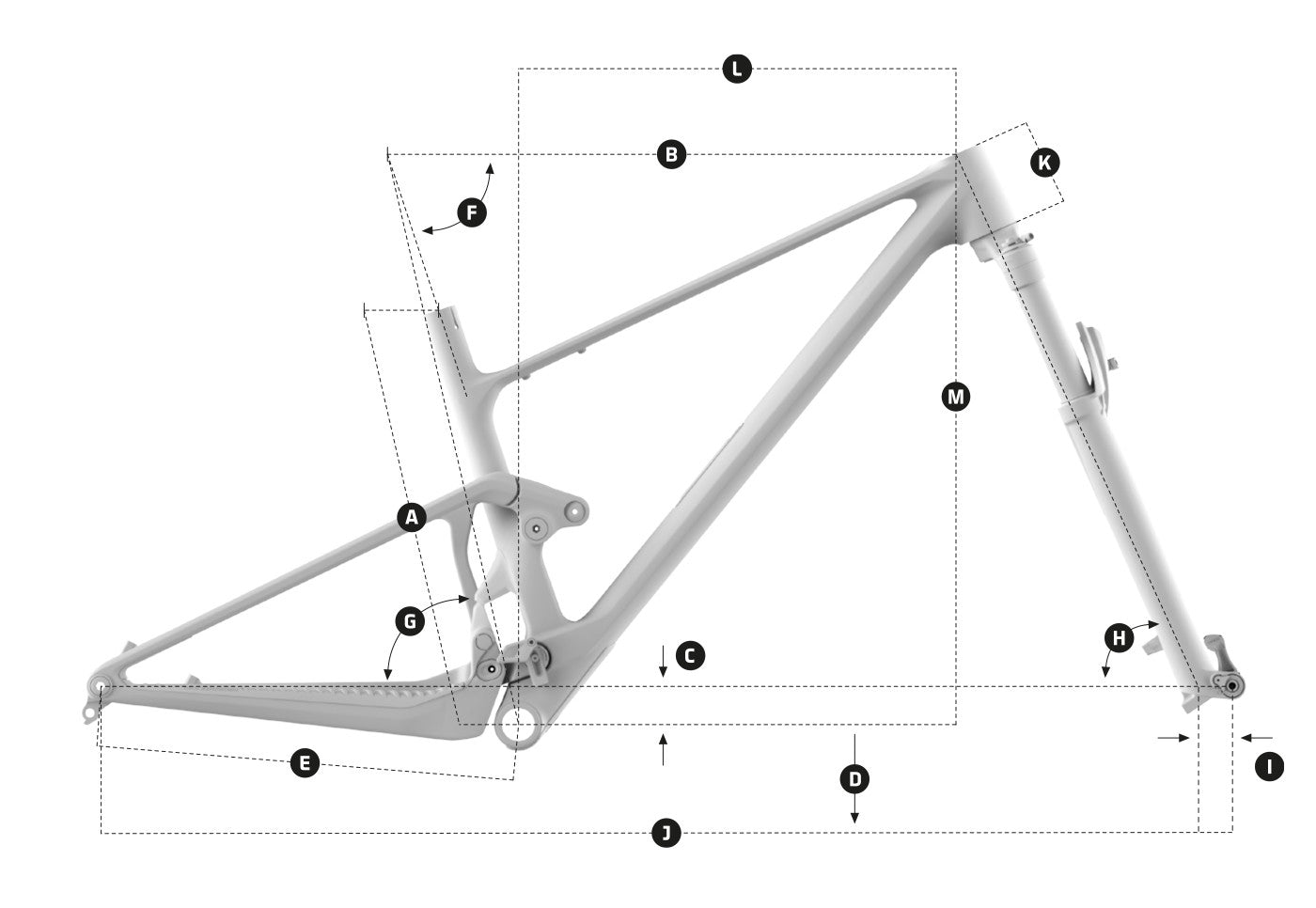

GEOMETRY
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 410 mm | 440 mm | 470 mm | 500 mm |
| B | Toptube length | 576 mm | 601mm | 629,4 mm | 657,8 mm |
| C | Bottom bracket drop | -40 | -40 | -40 | -40 |
| D | Bottom bracket height | 335 mm | 335 mm | 335 mm | 335 mm |
| E | Chainstay length | 435 mm | 435 mm | 435 mm | 435 mm |
| F | Seat tube angle | 72,5° | 72,9° | 73,2° | 73,5° |
| G | Effective seattube angle | 76,2° | 76,2° | 76,2° | 76,2° |
| H | Headtube angle | 66,5° | 66,5° | 66,5° | 66,5° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J | Wheelbase | 115,2 mm | 117,7 mm | 120,8 mm | 123,9 mm |
| K | Headtube length | 90 mm | 90 mm | 105 mm | 120 mm |
| L | Reach | 430 mm | 455 mm | 480 mm | 505 mm |
| M | Stack | 594,6 mm | 594,6 mm | 608,3 mm | 622,1 mm |
