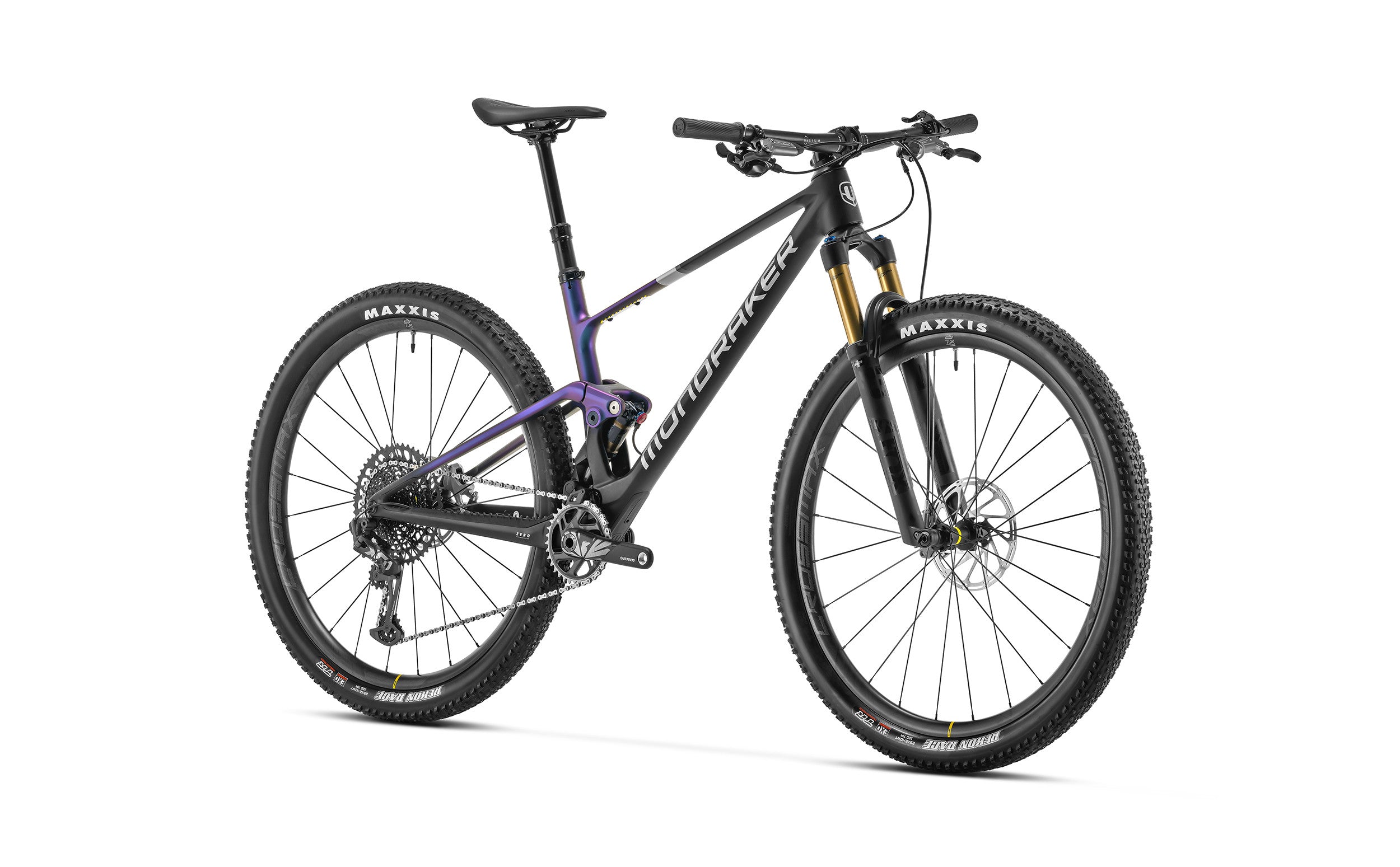

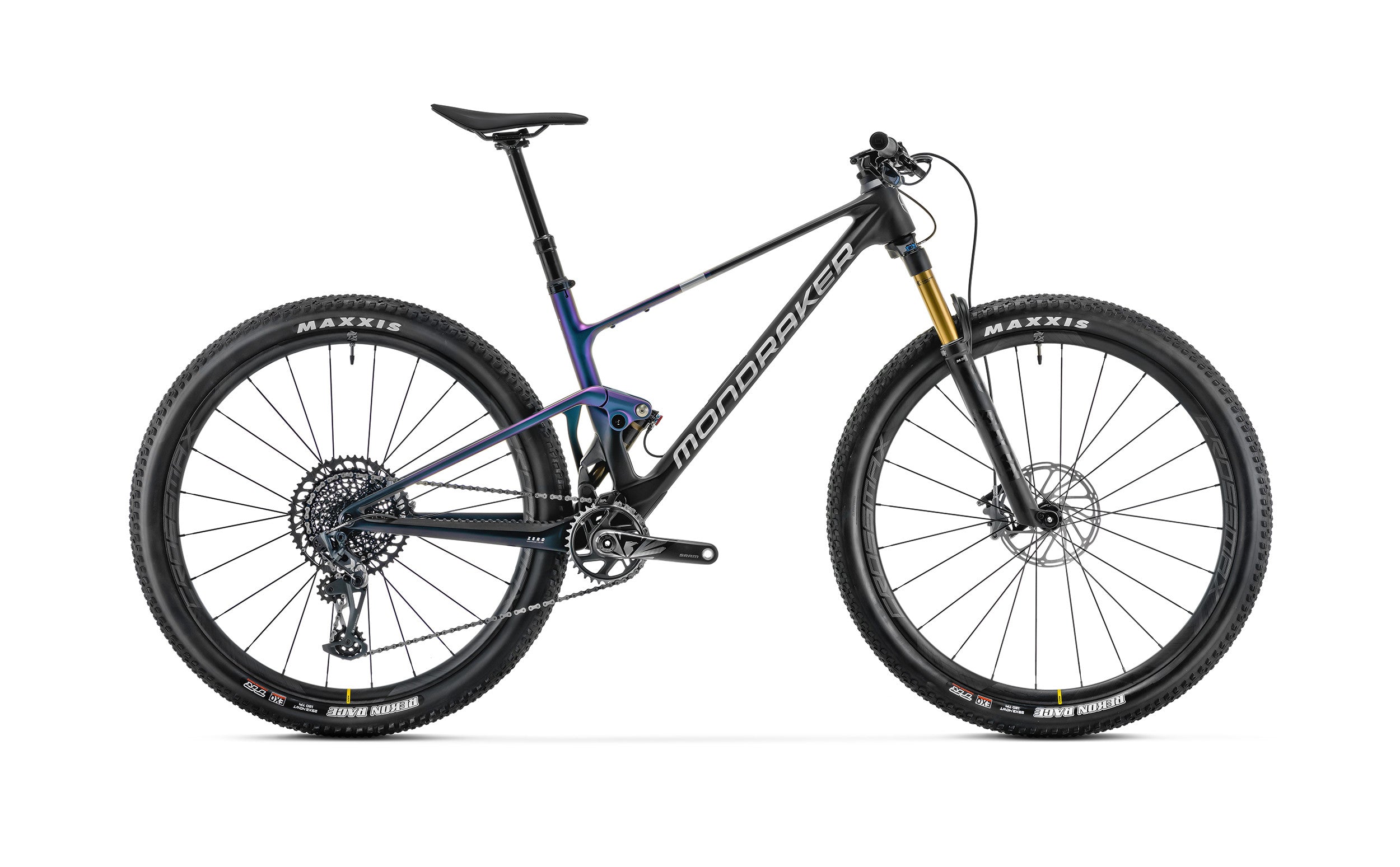

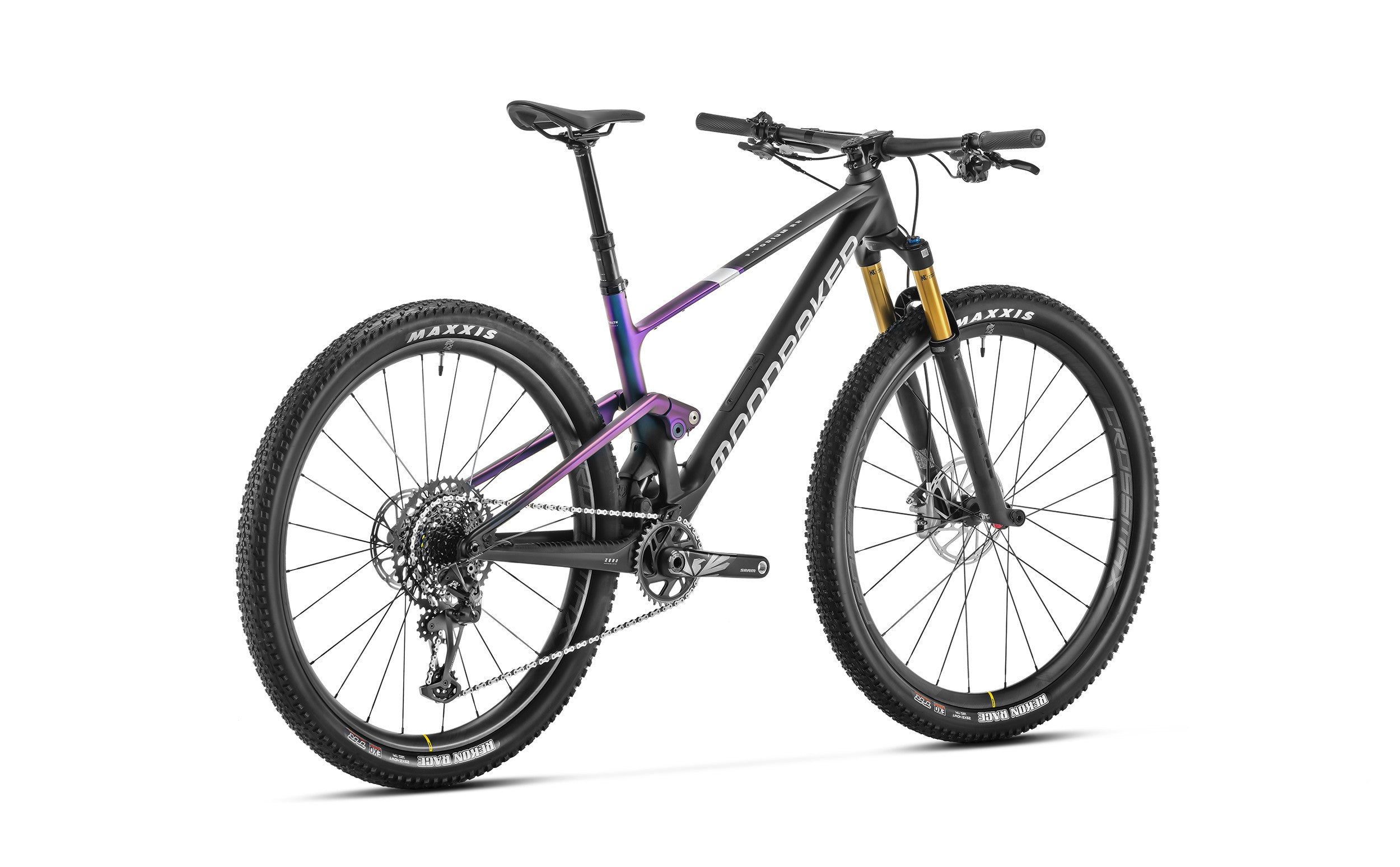

F-PODIUM RR
120MM
115MM
CROSS COUNTRY
The Ultimate XC Weapon. Designed by our best engineers, built using our most refined carbon, and ridden by some of the fastest cross-country racers in the world. The F-Podium is the lightest, stiffest, and fastest full-suspension XC bike we’ve ever produced.
FORWARD GEOMETRY
LEARN MORE
STEALTH CARBON
LEARN MORE
ZERO SUSPENSION
LEARN MORECOMPONENTS
technical specs
Frame
F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
Sizes
S: 410mm / M: 440mm / L: 470mm / XL: 500mm
REAR SHOCK
Fox Float SL Factory Kashima SV EVOL, 165x45mm. Settings: 3 position remote compression (open/medium/lock), low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS
Medium compression, medium rebound, air volume spacer 0.4
Fork
Fox 34 Step Cast Float FIT4 EVOL Factory Kashima, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, compression micro-adjustment at low-speed, rebound, air preload
FORK REMOTE
Fox 3 position dual pull push to lock
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar
Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
GRIPS
Onoff Desert, 1lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
SADDLE
Fizik Vento Argo X5
FRONT BRAKE
Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
REAR BRAKE
Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
BRAKE LEVER
Sram Level Bronze, tools-free reach adjust, lever pivot bushings
RIMS
Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
SPOKES
Mavic 24 straight-pull double butted spokes
FRONT HUB
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
REAR HUB
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
FRONT TYRE
Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
REAR TYRE
Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
CRANKSET
Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55
RINGS
34T, CNC-machined alloy
BOTTOM BRACKET
Sram DUB BSA, sealed bearings, 73mm
CHAIN
Sram GX Eagle, 12s, Powerlock
REAR DERAILLEUR
Sram X01 Eagle, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1
SHIFT LEVERS
Sram GX Eagle, 12s
CASSETTE
Sram XG-1275, 10-52T, 12s
DERAILLEUR HANGER
Sram UDH
WEIGHT
11.5 kg
F-PODIUM RR
SIZES
GEOMETRY
|
FRAME SIZE
|
S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 410 mm | 440 mm | 470 mm | 500 mm |
| B | Toptube length | 576 mm | 601mm | 629,4 mm | 657,8 mm |
| C | Bottom bracket drop | -40 | -40 | -40 | -40 |
| D | Bottom bracket height | 335 mm | 335 mm | 335 mm | 335 mm |
| E | Chainstay length | 435 mm | 435 mm | 435 mm | 435 mm |
| F | Seat tube angle | 72,5° | 72,9° | 73,2° | 73,5° |
| G | Effective seattube angle | 76,2° | 76,2° | 76,2° | 76,2° |
| H | Headtube angle | 66,5° | 66,5° | 66,5° | 66,5° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J | Wheelbase | 115,2 mm | 117,7 mm | 120,8 mm | 123,9 mm |
| K | Headtube length | 90 mm | 90 mm | 105 mm | 120 mm |
| L | Reach | 430 mm | 455 mm | 480 mm | 505 mm |
| M | Stack | 594,6 mm | 594,6 mm | 608,3 mm | 622,1 mm |
