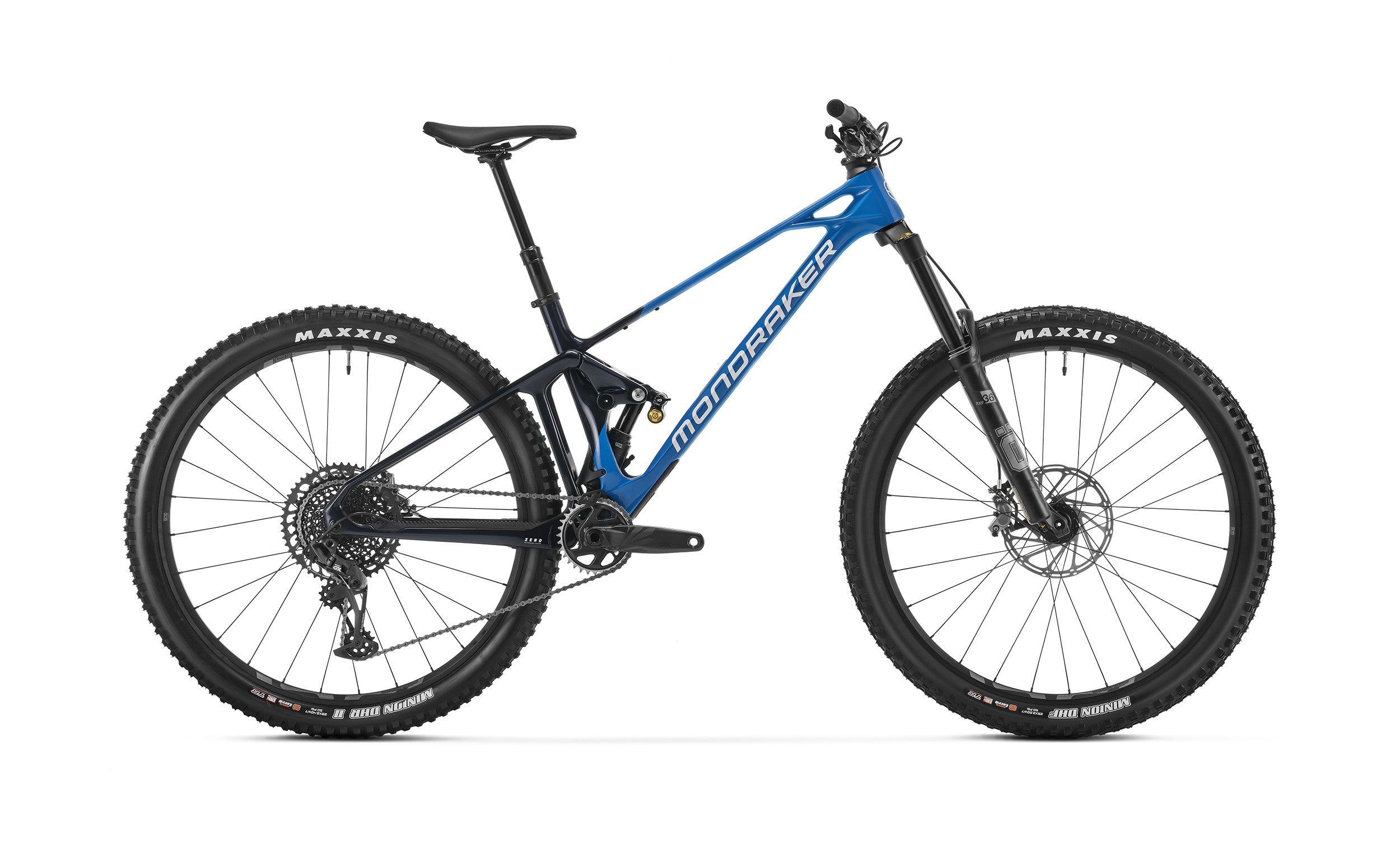

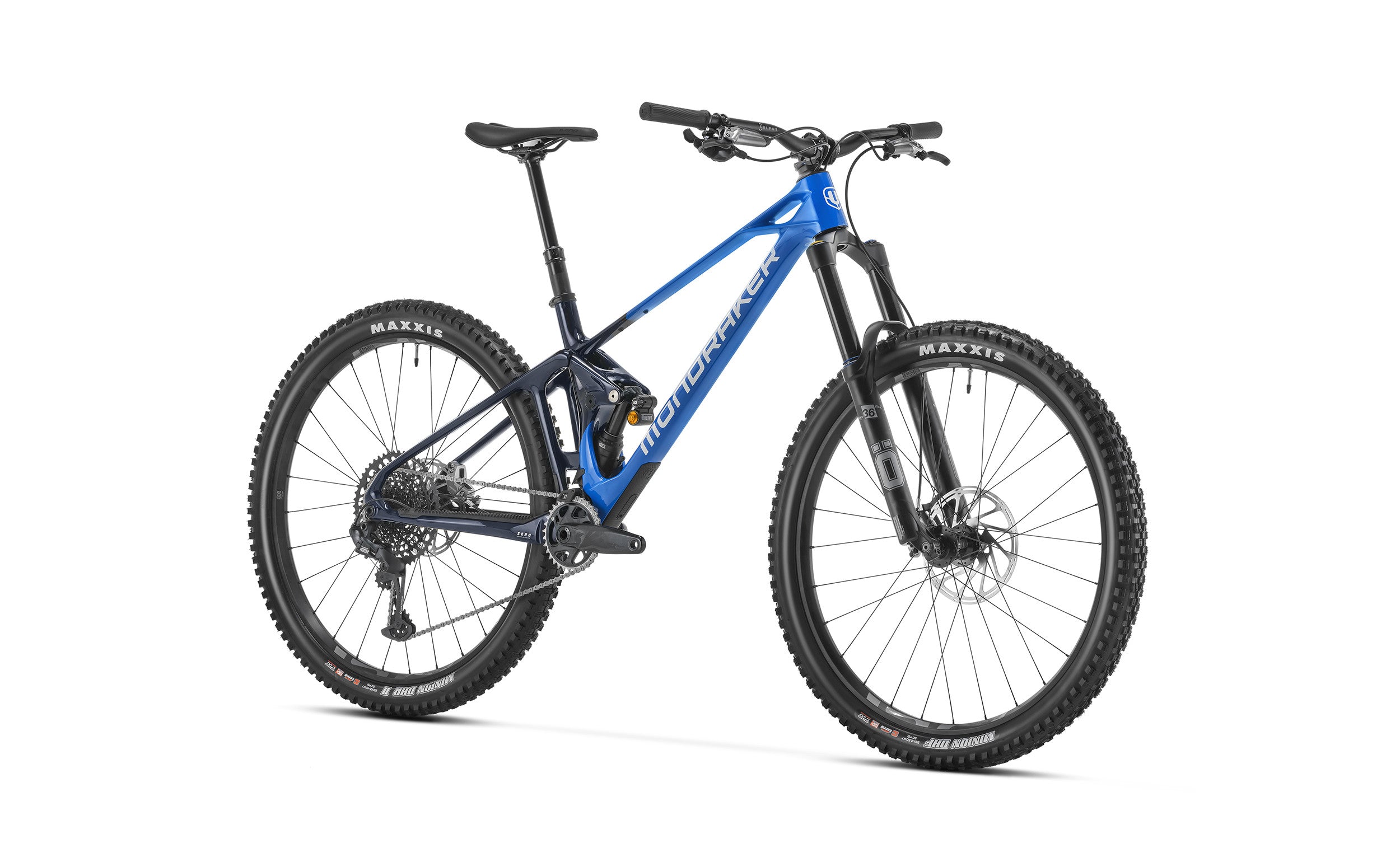

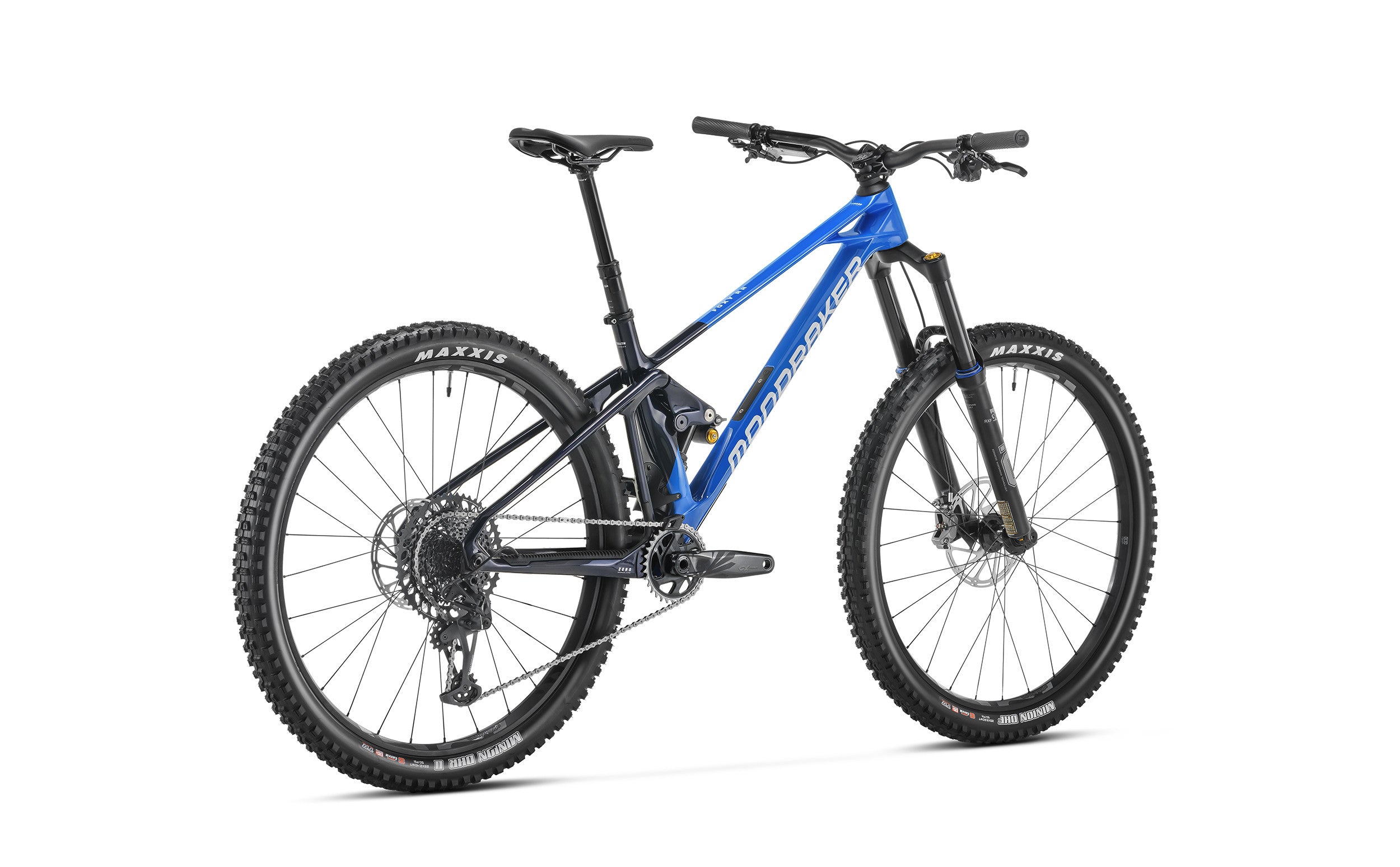

FOXY CARBON RR

160MM

150MM

ENDURO

Fast up, faster down, pinpoint precise, and instant fun. Meet the Foxy. Our 160/150mm enduro offering is built to ride it all, and suitably quicker than your comfort level. It’s probably the fastest mid-travel enduro bike you've ever ridden.

FORWARD GEOMETRY

LEARN MORE

STEALTH CARBON

LEARN MORE

ZERO SUSPENSION

LEARN MORE

COMPONENTS

technical specs

Frame

Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 500mm

REAR SHOCK

Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

SHOCK SETTINGS

C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)

Fork

Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40

Headset

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

Stem

Onoff Krypton FG 30mm, CNC, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS

Onoff Desert, 1lock-on, 135mm

SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

SADDLE

SDG BEL-AIR 3.0, LPU foam, steel rails

FRONT BRAKE

Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

REAR BRAKE

Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

BRAKE LEVER

Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

RIMS

e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

SPOKES

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

FRONT HUB

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

REAR HUB

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

FRONT TYRE

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

REAR TYRE

Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

CRANKSET

Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52

RINGS

32T, CNC-machined alloy, X-SYNC 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm

CHAIN

Sram NX Eagle, 12s, Powerlock

REAR DERAILLEUR

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

SHIFT LEVERS

Sram Trigger GX Eagle, 12s, X-Actuation 1:1

CASSETTE

Sram XG-1275, 10-52T, 12s

DERAILLEUR HANGER

Sram UDH

WEIGHT

14.6 kg

FOXY CARBON RR

FOXY CARBON RR

Sale price$12,995.00
Size:S
Colour:Carerra Blue / Midnight Blue

Sizing Chart

Sizing Chart

TECHNICAL SUPPORT
