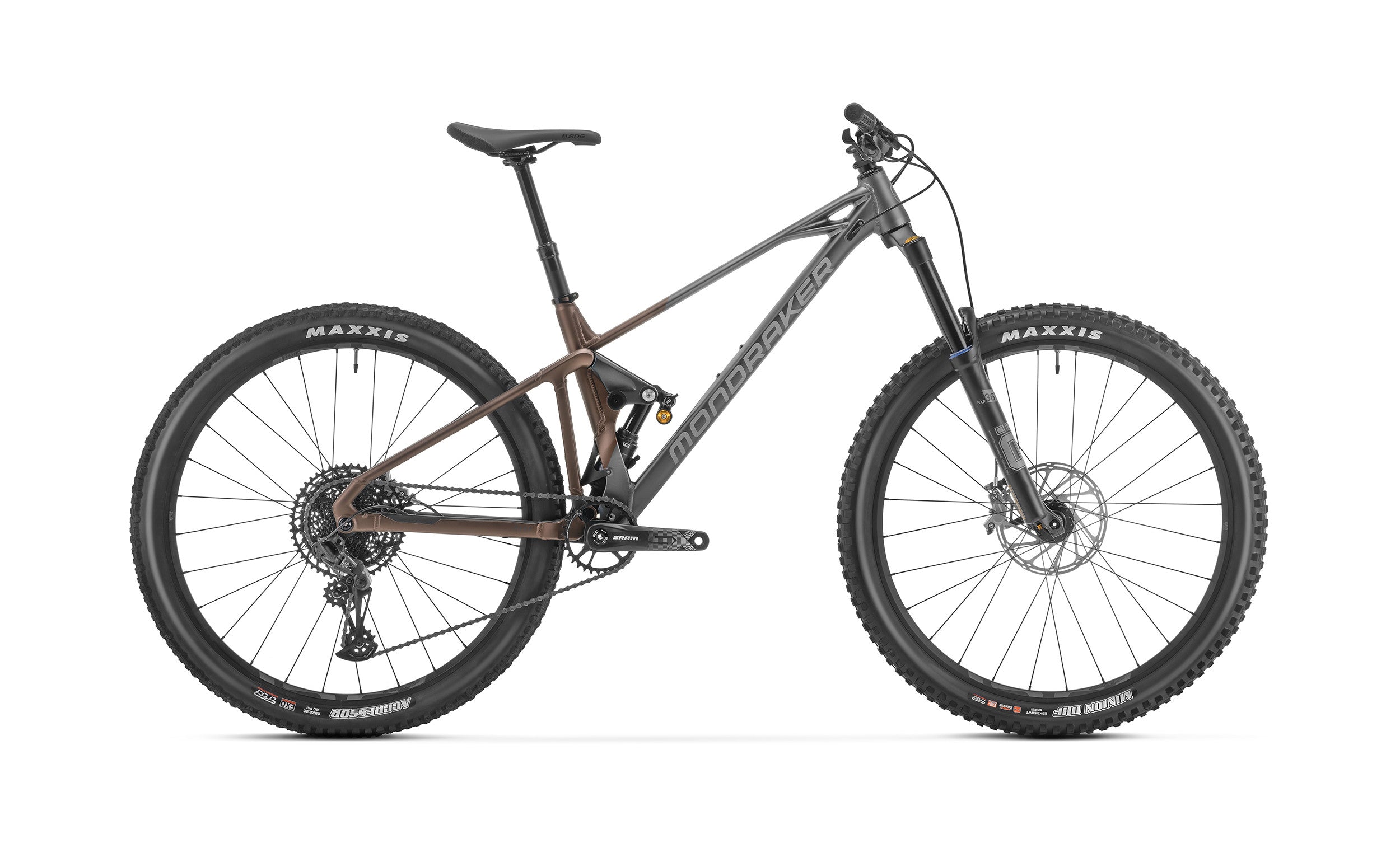

FOXY R
160MM
150MM
ENDURO
Fast up, faster down, pinpoint precise, and instant fun. Meet the Foxy. Our 160/150mm enduro offering is built to ride it all, and suitably quicker than your comfort level. It’s probably the fastest mid-travel enduro bike you've ever ridden.
FORWARD GEOMETRY
LEARN MORESTEALTH ALLOY
LEARN MOREZERO SUSPENSION
LEARN MORECOMPONENTS
technical specs
Frame
Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
REAR SHOCK
Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
SHOCK SETTINGS
C20 compression, R35 rebound
Fork
Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Twin, 1lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
SADDLE
SDG BEL-AIR 3.0, LPU foam, steel rails
FRONT BRAKE
Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
REAR BRAKE
Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
BRAKE LEVER
Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
RIMS
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
SPOKES
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
FRONT HUB
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
REAR HUB
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
FRONT TYRE
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
REAR TYRE
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
CRANKSET
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
RINGS
32T, CNC-machined alloy, X-SYNC 2
BOTTOM BRACKET
Sram DUB BSA, sealed bearings, 73mm
CHAIN
Sram SX Eagle, 12s, Powerlock
REAR DERAILLEUR
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERS
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
CASSETTE
Sram PG-1230, 11-50T, 12s
DERAILLEUR HANGER
Sram UDH
WEIGHT
16.2 kg
FOXY R
SIZES

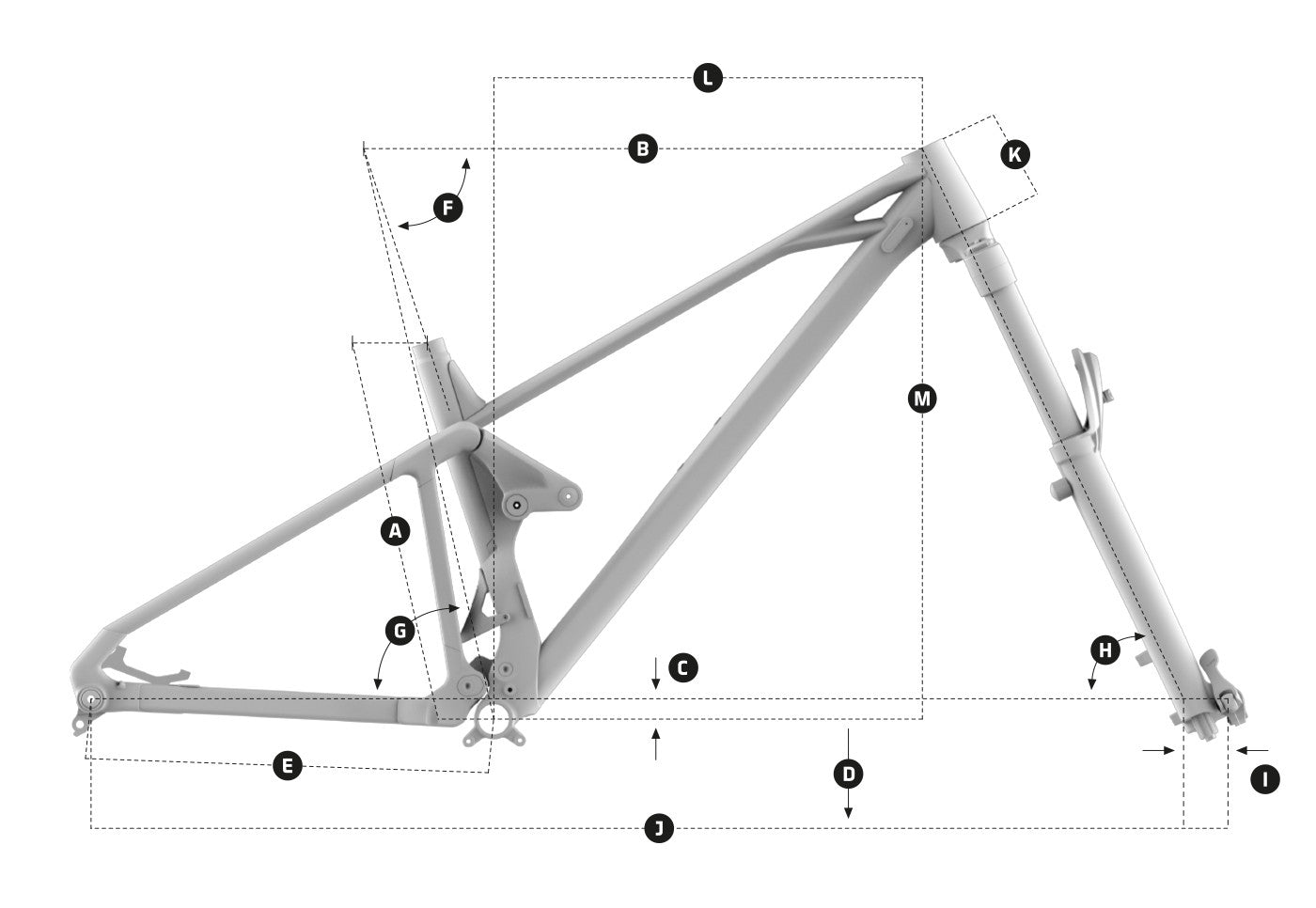

GEOMETRY
FRAME SIZE
|
S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 380mm | 420mm | 450mm | 490mm |
B | Toptube length | 600mm | 620mm | 650mm | 670mm |
C | Bottom bracket drop | 30mm | 30mm | 30mm | 30mm |
D | Bottom bracket height | 345mm | 345mm | 345mm | 345mm |
E | Chainstay length | 445 mm | 445 mm | 445 mm | 445 mm |
F | Seat tube angle | 71º | 71º | 71º | 71º |
G | Effective seattube angle | 76,5° | 76,5° | 76,5° | 76,5° |
H | Headtube angle | 64,5º | 64,5º | 64,5º | 64,5º |
I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
J | Wheelbase | 1210mm | 1233mm | 1286mm | |
K | Headtube length | 90mm | 100mm | 115 mm | 130 mm |
L | Reach | 445mm | 465mm | 485mm | 505mm |
M | Stack | 617mm | 627mm | 641mm | 656mm |
