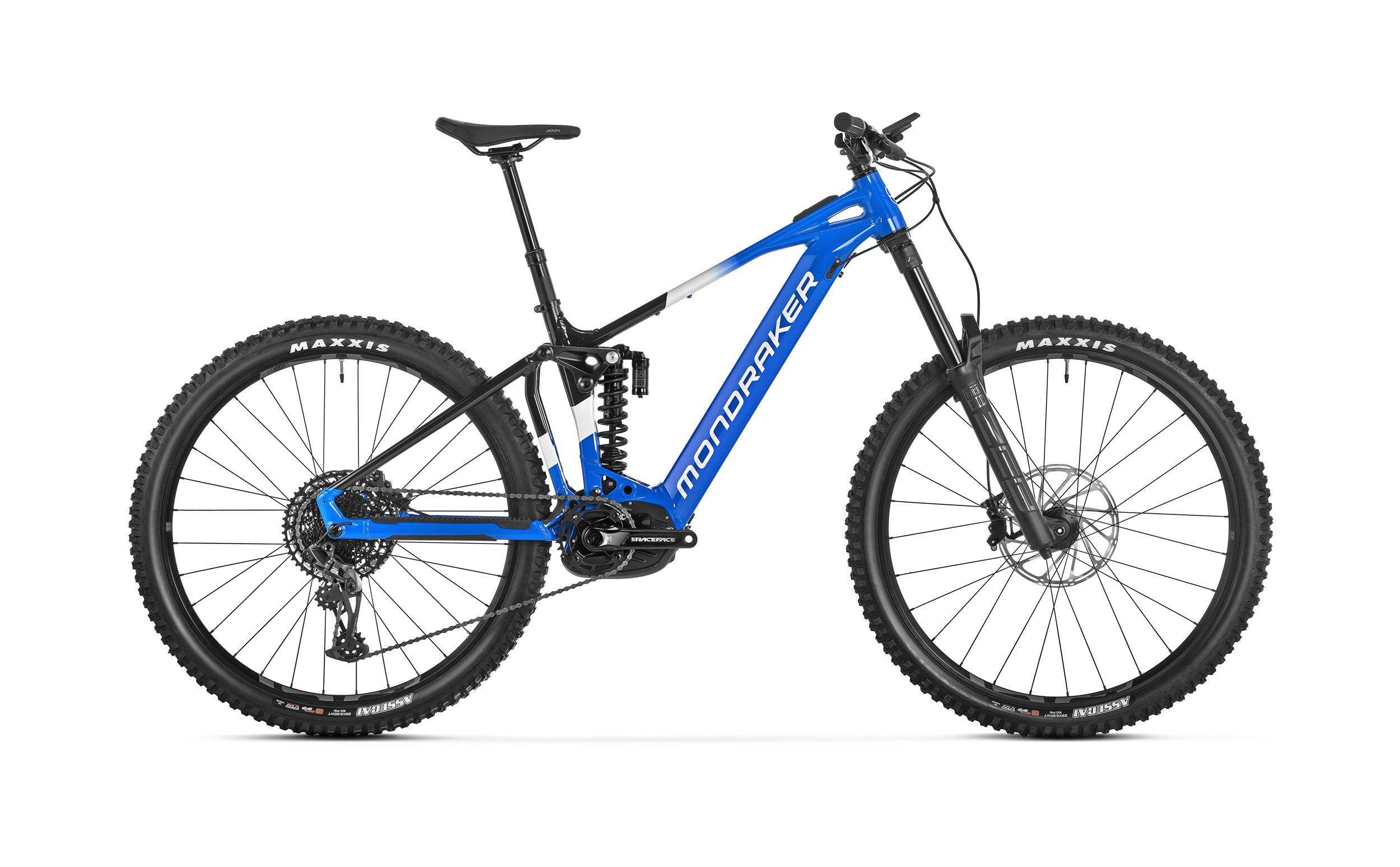

LEVEL R
180MM
170MM
GRAVITY ENDURO / BIKEPARK
The apex predator of the E-bike world. The Level descends where others cannot. Our 180/170mm travel E-super enduro Level gives almost downhill bike gravity performance, with the electric versatility to power yourself back up the climbs! Unlock long-travel capability with climb-assisted electric potential.
FORWARD GEOMETRY
LEARN MORESTEALTH ALLOY
LEARN MOREBOSCH
LEARN MORECOMPONENTS
technical specs
Frame
Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCK
RockShox Super Deluxe coil Select R, 225x75mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings
Shock Settings
Medium compression, Linear rebound. Spring rate: S size 300 lbs, M size 300 lbs, L size 350 lbs, XL size 400 lbs
Fork
RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Twin, 1lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
SADDLE
FIZIK Terra Aidon X5 145mm
FRONT BRAKE
Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
REAR BRAKE
Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
BRAKE LEVER
Sram DB8, tool reach adjust, lever pivot bushings
RIMS
e*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes
SPOKES
e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
FRONT HUB
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
REAR HUB
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
FRONT TYRE
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
REAR TYRE
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
CRANKSET
Race Face Aeffect ebike, 165mm
RINGS
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
CHAIN
Sram SX Eagle, 12s, Powerlock
REAR DERAILLEUR
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERS
Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
CASSETTE
Sram PG-1210, 11-50T, 12s
DERAILLEUR HANGER
Mondraker M068
WEIGHT
26.7 kg
DISPLAY
Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
MOTOR
Bosch Performance Line CX Cruise (32km/h) GEN4 SMART SYSTEM
BATTERY
Bosch Powertube 750Wh
LEVEL R
SIZES
GEOMETRY
FRAME SIZE
|
S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 380mm | 420mm | 450mm | 490mm |
B | Toptube length | 602mm | 622mm | 647mm | 667mm |
C | Bottom bracket drop | -15mm | -15mm | -15mm | -15mm |
D | Bottom bracket height | 357mm | 357mm | 357mm | 357mm |
E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
G | Effective seattube angle | 76.5° | 76.5° | 76.5° | 76.5° |
H | Headtube angle | 65° | 65° | 65° | 65° |
I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
J | Wheelbase | 1250mm | 1270mm | 1290mm | 1310mm |
K | Headtube length | 110mm | 110mm | 130mm | 130mm |
L | Reach | 450mm | 470mm | 490mm | 510mm |
M | Stack | 632mm | 632mm | 652mm | 652mm |
