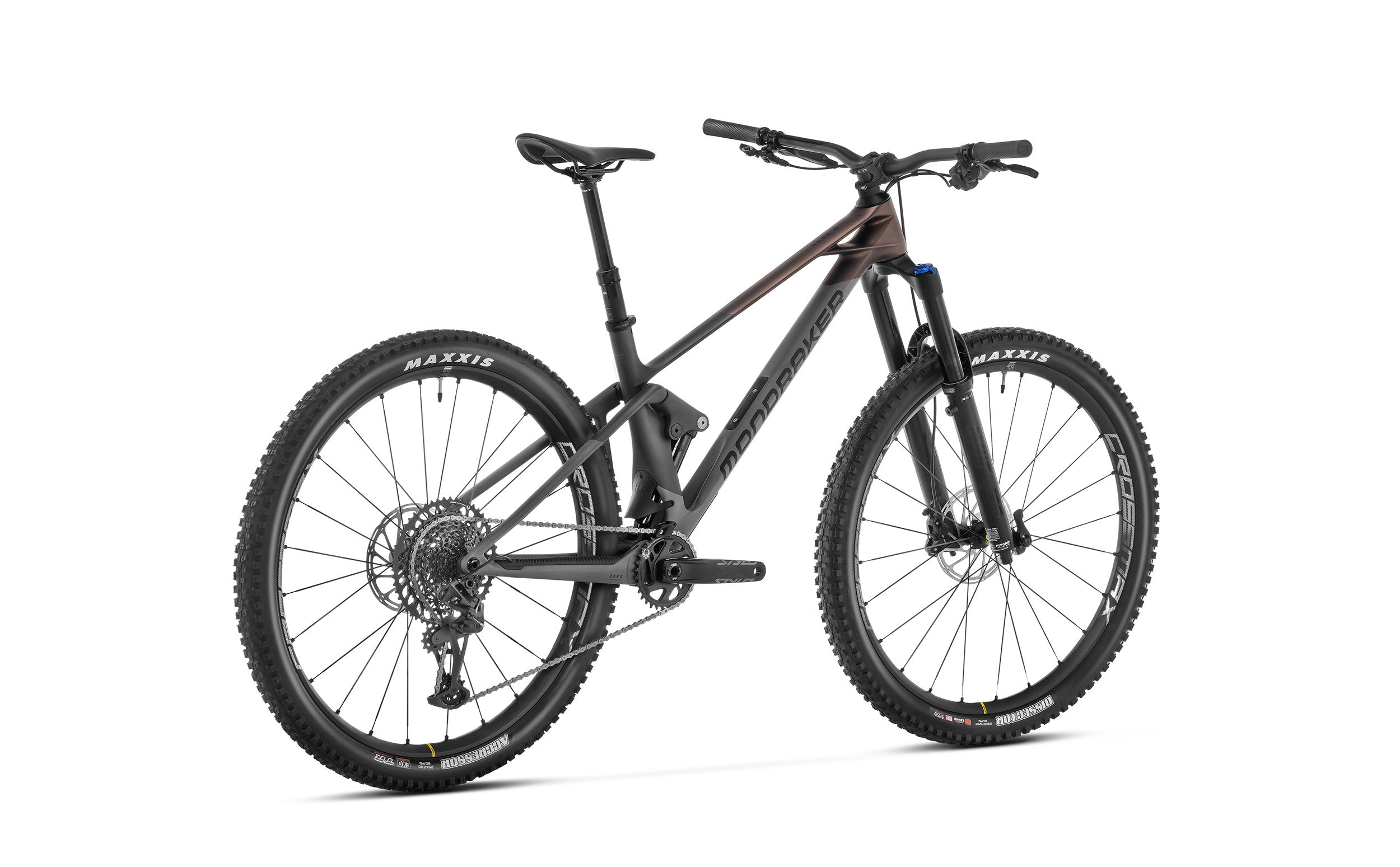

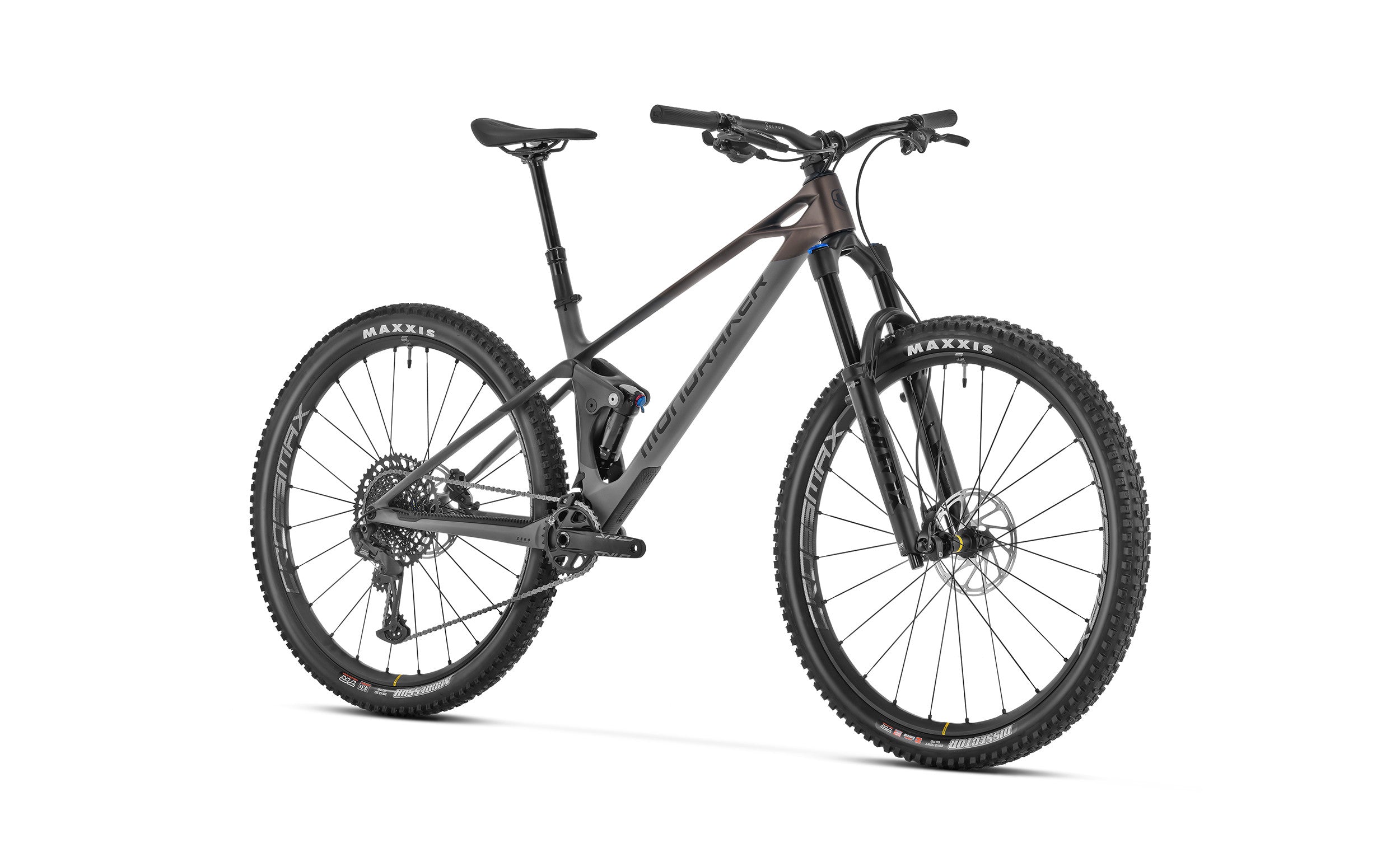

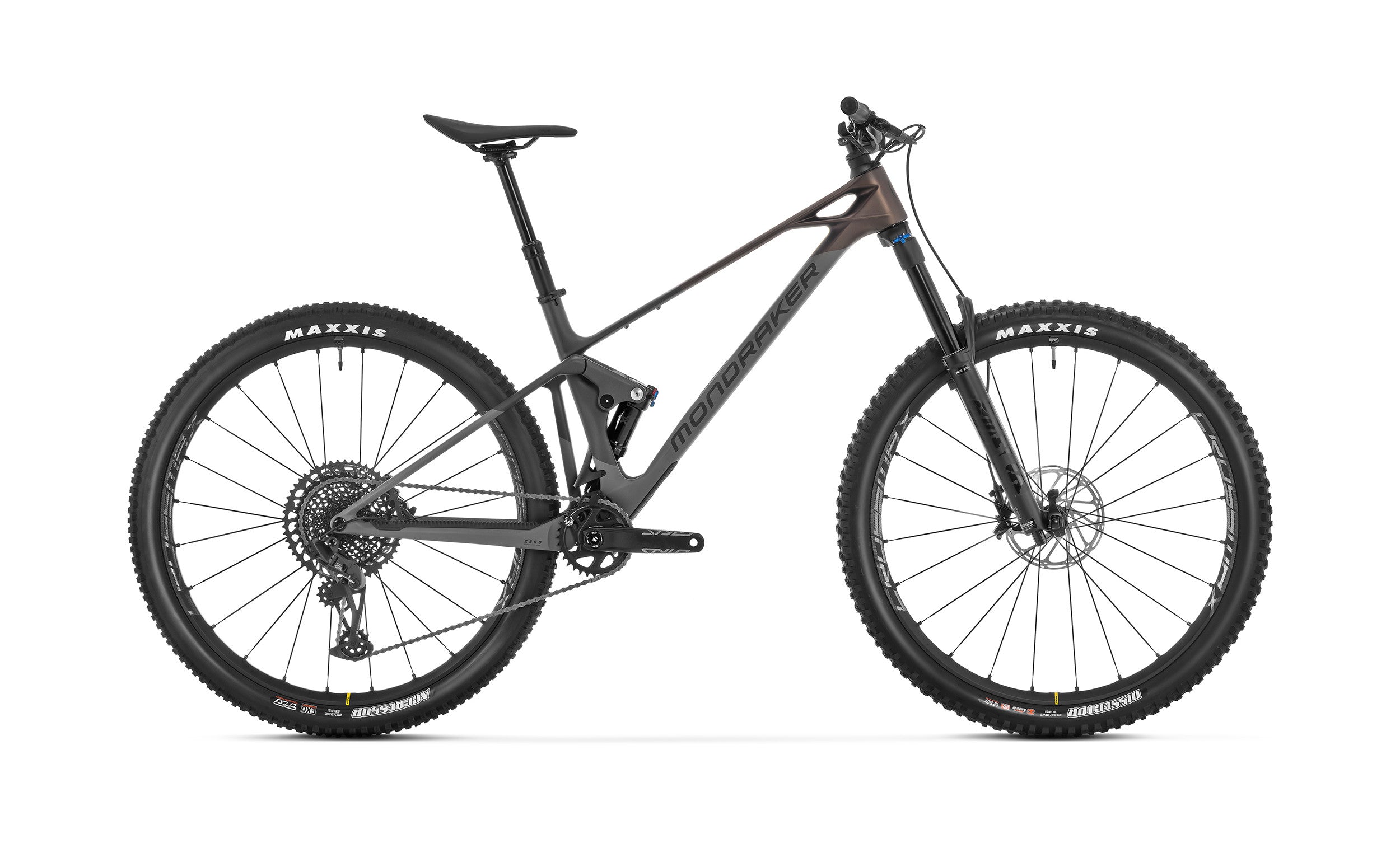

RAZE CARBON R
150mm
130mm
AGGRESSIVE TRAIL
The new benchmark in short-travel, trail-domination. Super-light, wicked-fast, sleek, and mind-blowingly agile. Meet the Raze.150/130mm of high-speed, hill-crushing, corner-thrashing, and hair-raising performance.
FORWARD GEOMETRY
LEARN MORESTEALTH CARBON
LEARN MOREZERO SUSPENSION
LEARN MORECOMPONENTS
technical specs
Frame
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
REAR SHOCK
Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS
Light compression, light rebound, air volume spacer 0.6
Fork
Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Desert, 1lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
SADDLE
Fizik Vento Argo X5
FRONT BRAKE
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
REAR BRAKE
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
BRAKE LEVER
Sram G2 R, tool-free reach adjust, lever pivot bushings
RIMS
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
SPOKES
Mavic 24 straight-pull double butted spokes
FRONT HUB
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
REAR HUB
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
FRONT TYRE
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
REAR TYRE
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
CRANKSET
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52
RINGS
32T, CNC-machined alloy, X-SYNC 2
BOTTOM BRACKET
Sram DUB BSA, sealed bearings, 73mm
CHAIN
Sram NX Eagle, 12s, Powerlock
REAR DERAILLEUR
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERS
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
CASSETTE
Sram XG-1275, 10-52T, 12s
DERAILLEUR HANGER
Sram UDH
WEIGHT
13.6 kg
RAZE CARBON R
SIZES

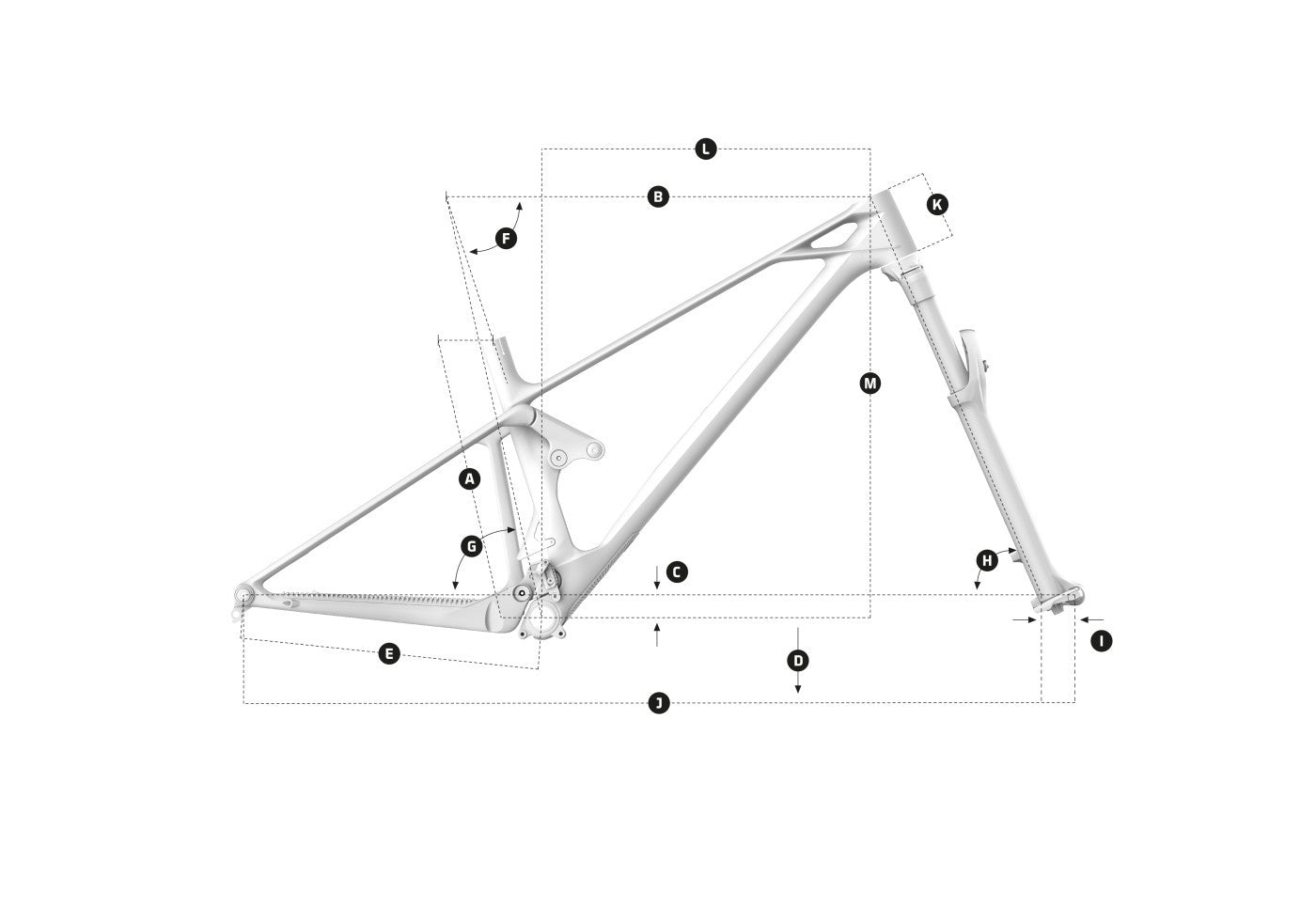

GEOMETRY
FRAME SIZE
|
S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 375 mm | 415 mm | 445 mm | 500 mm |
B | Toptube length | 595 mm | 620 mm | 645 mm | 670 mm |
C | Bottom bracket drop | -30 mm | -30 mm | -30 | -30 mm |
D | Bottom bracket height | 343 mm | 343 mm | 343 mm | 343 mm |
E | Chainstay length | 435 mm | 435 mm | 435 mm | 435 mm |
F | Seat tube angle | 71° | 71° | 71° | 71° |
G | Effective seattube angle | 76.5° | 76.5° | 76.5° | 76.5° |
H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
J | Wheelbase | 1193 mm | 1217 mm | 1243 mm | 1269 mm |
K | Headtube length | 90 mm | 100 mm | 115 mm | 130 mm |
L | Reach | 455 mm | 475 mm | 495 mm | 515 mm |
M | Stack | 608 mm | 617 mm | 631 mm | 645 mm |
