RAZE R

150mm

130mm

AGGRESSIVE TRAIL

The new benchmark in short-travel, trail-domination. Super-light, wicked-fast, sleek, and mind-blowingly agile. Meet the Raze.150/130mm of high-speed, hill-crushing, corner-thrashing, and hair-raising performance.

FORWARD GEOMETRY

LEARN MORE

STEALTH ALLOY

LEARN MORE

ZERO SUSPENSION

LEARN MORE

COMPONENTS

technical specs

Frame

Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

REAR SHOCK

Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings

SHOCK SETTINGS

Light compression, light rebound, air volume spacer 0.6

Fork

Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS

Onoff Twin, 1lock-on, 135mm

SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

SADDLE

Mondraker MDK Series PU 2023

FRONT BRAKE

Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

REAR BRAKE

Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

BRAKE LEVER

Sram G2 R, tool-free reach adjust, lever pivot bushings

RIMS

Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

SPOKES

Mavic 24 straight-pull double butted spokes

FRONT HUB

Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

REAR HUB

Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub

FRONT TYRE

Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

REAR TYRE

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

CRANKSET

Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52

RINGS

32T, CNC-machined alloy, X-SYNC 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm

CHAIN

Sram NX Eagle, 12s, Powerlock

REAR DERAILLEUR

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

SHIFT LEVERS

Sram Trigger NX Eagle, 12s, X-Actuation 1:1

CASSETTE

Sram PG-1230, 11-50T, 12s

DERAILLEUR HANGER

Sram UDH

WEIGHT

14.9 kg

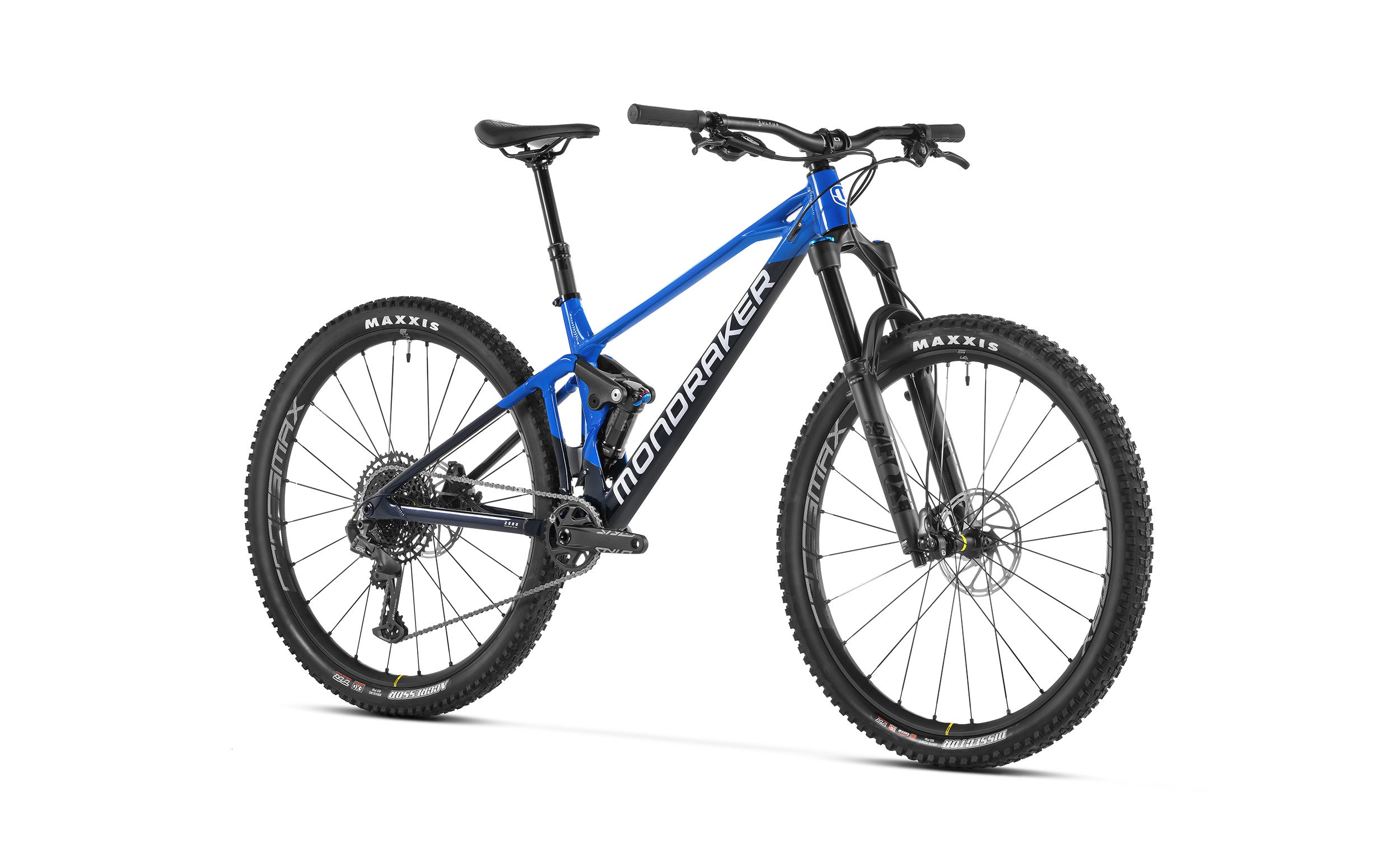

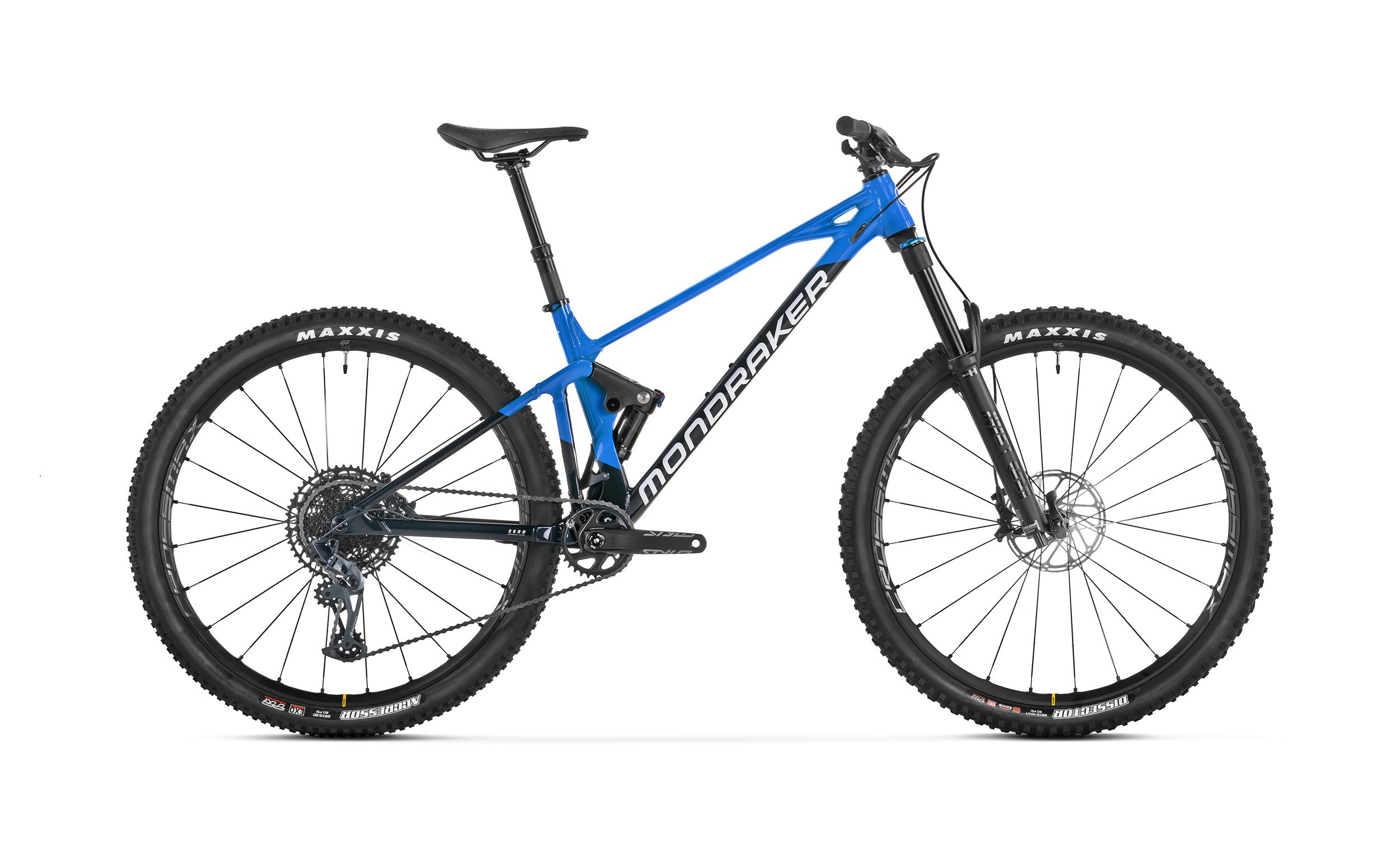

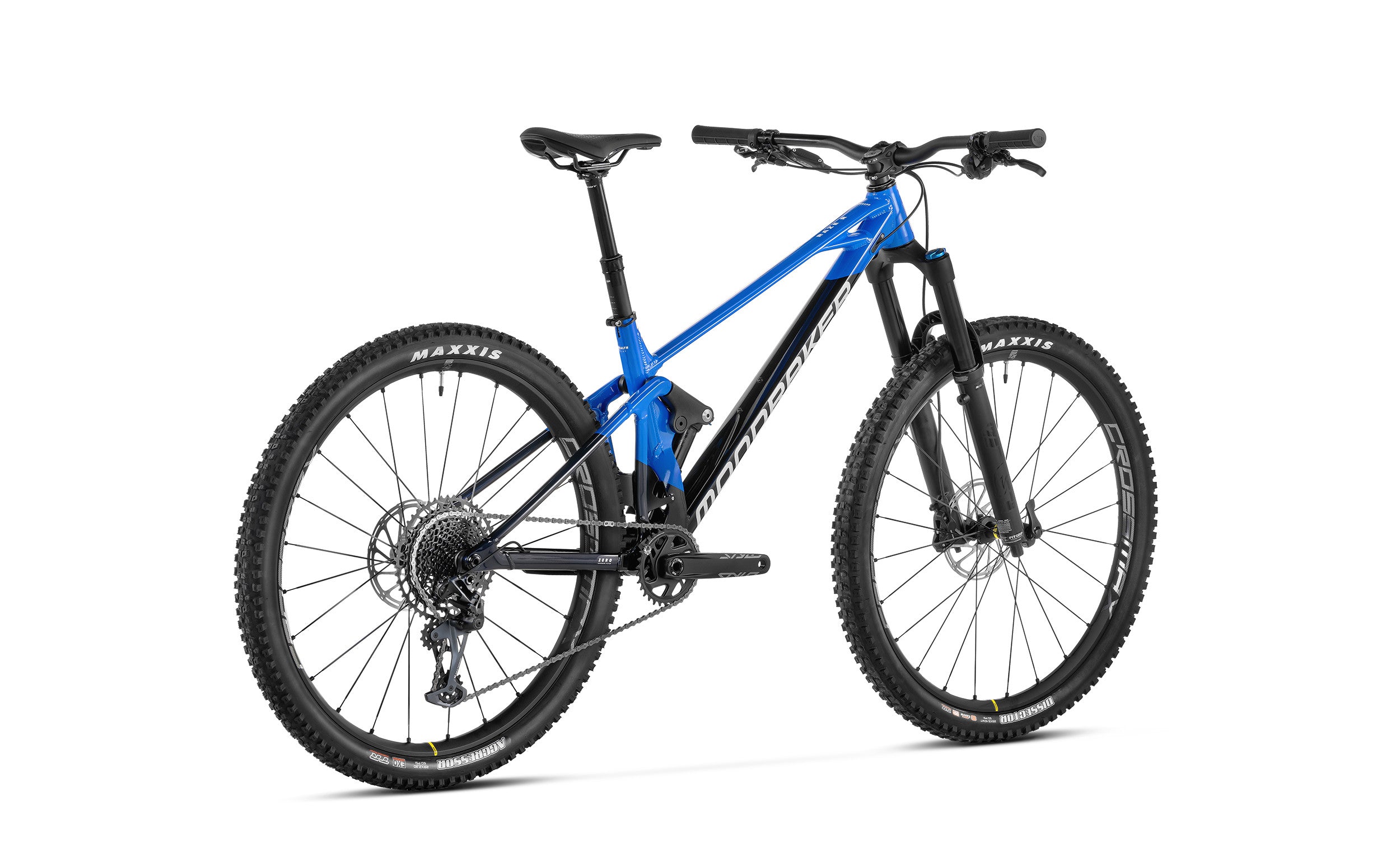

RAZE R

RAZE R

Sale price$8,995.00
Colour:Midnight Blue / Carrera Blue / Vortex Grey
Size:S

Sizing Chart

Sizing Chart

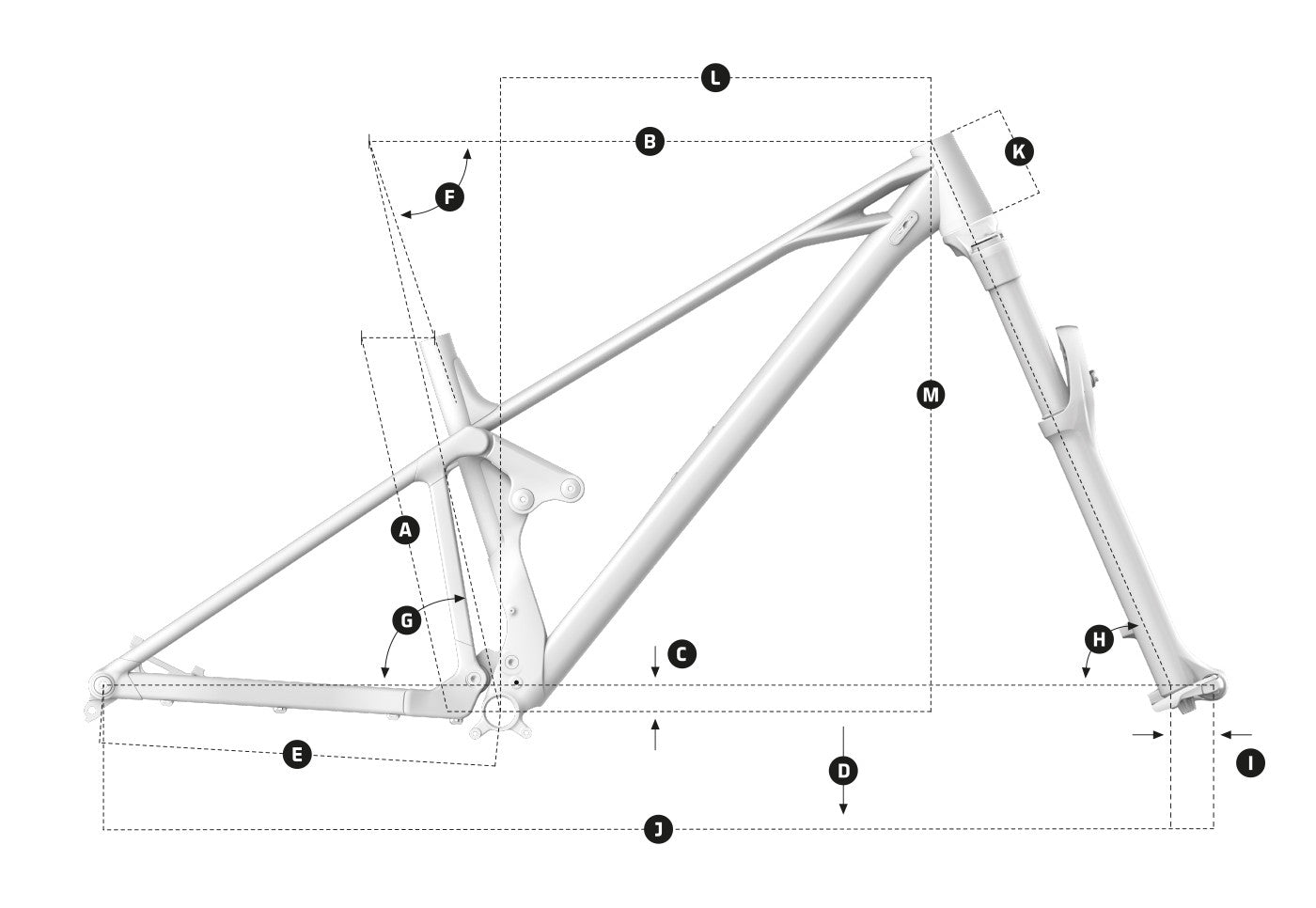

SIZES

GEOMETRY


FRAME SIZE
S M L XL
A Seattube length 375 mm 4515 mm 445 mm 490 mm
B Toptube length 594 mm 614 mm 638 mm 658 mm
C Bottom bracket drop -29 mm -29 mm -29 mm -29 mm
D Bottom bracket height 340 mm 340 mm 340 mm 340 mm
E Chainstay length 435 mm 435 mm 435 mm 435 mm
F Seat tube angle 72º 72º 72º 72º
G Effective seattube angle 77º 77º 77º 77º
H Headtube angle 65.5º 65.5º 65.5º 65.5º
I Fork Offset 44 mm 44 mm 44 mm 44 mm
J Wheelbase 1197 mm 1216 mm 1246 mm 1266 mm
K Headtube length 100 mm 100 mm 120 mm 120 mm
L Reach 450 mm 470 mm 490 mm 510 mm
M Stack 623 mm 623 mm 641 mm 641 mm
