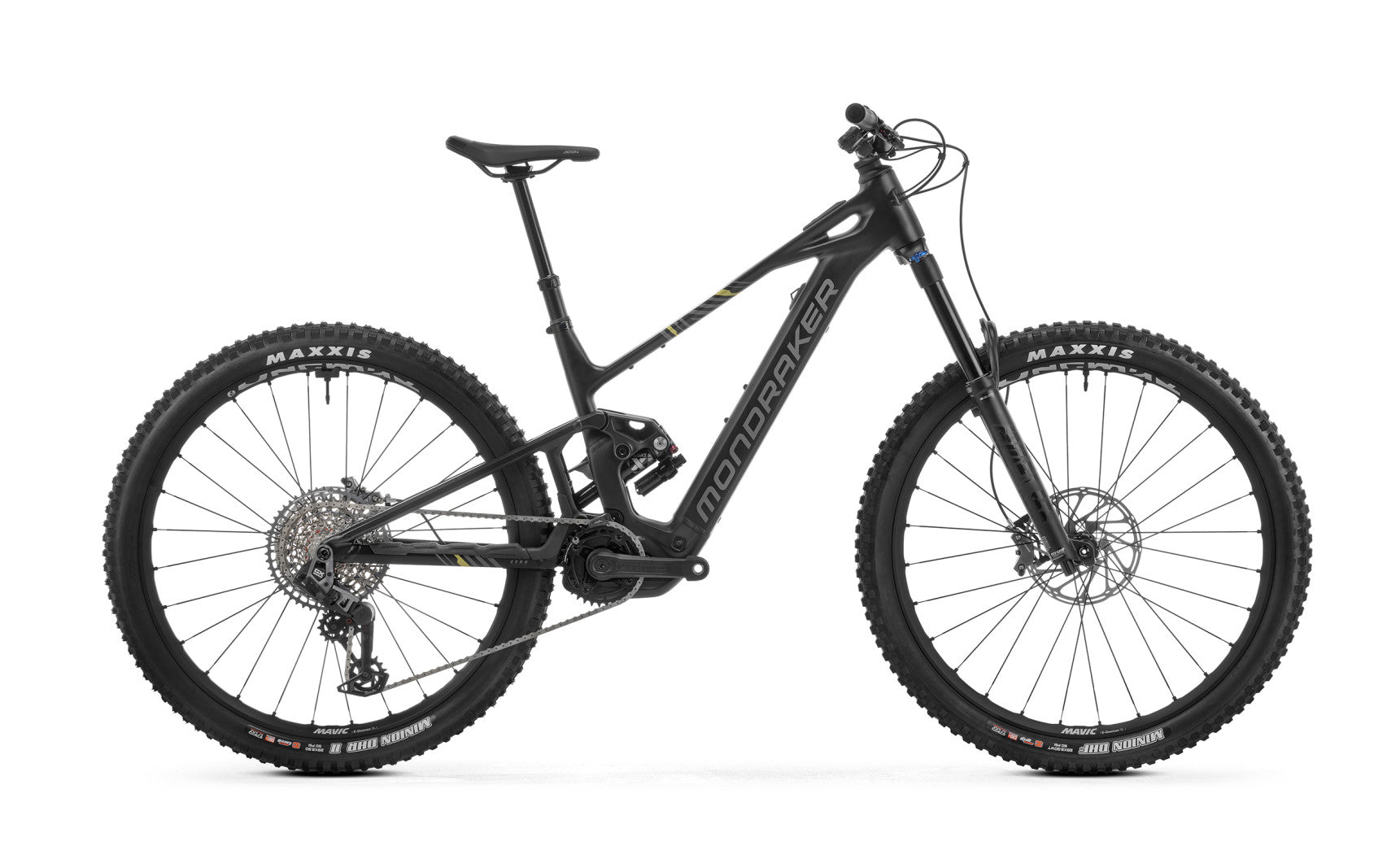

SLY RR
160mm
150mm
Lighter-weight but super-powered.
The Sly is our most advanced Stealth Alloy full-suspension frame to date. The forefront of electric enduro possibility, meshing two worlds of super-light and full-powered E. Enjoy 55Nm, and 600W of peak power from the Bosch Performance SX motor, in a sub-21kg athletic alloy enduro experience. A 400Wh battery offers a ride-feel similar to that of the DUNE, with an optional 250W range extender for long-distance epics. The Sly forms the alloy alternative to the 160/150mm all-enduro Neat, but with all-new 5 size options for the perfect fit. Smash the ups and crush the downs, on breathtaking singletrack, or bike-park berms.
Conquer, don’t compromise.
FORWARD GEOMETRY
LEARN MORESTEALTH ALLOY
LEARN MOREBOSCH
LEARN MORECOMPONENTS
technical specs
Frame
6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mM
REAR SHOCK
Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock Settings
CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Fork
Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise
GRIPS
Onoff Forest, CNC lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
SADDLE
Fizik Terra Aidon X5 145mm
FRONT BRAKE
Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
REAR BRAKE
Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
BRAKE LEVER
Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
RIMS
Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
SPOKES
Mavic 28 straight-pull double butted spokes
FRONT HUB
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
REAR HUB
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
FRONT TYRE
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
REAR TYRE
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
CRANKSET
e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
RINGS
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
CHAIN
Sram GX Eagle T-Type, 12s, Powerlock
REAR DERAILLEUR
Sram GX Eagle AXS T-Type,12s
SHIFT LEVERS
Sram Eagle AXS Pod MMX, 12s
CASSETTE
Sram XS-1275, 10-52T, T-Type, 12s
WEIGHT
20,7 kg
DISPLAY
Purion 400 / Bosch Mini Remote / Bosch System Controller
MOTOR
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
BATTERY
Bosch Compact Powertube 400Wh
SLY RR
PRE ORDER - DUE OCTOBER 2025
SIZES

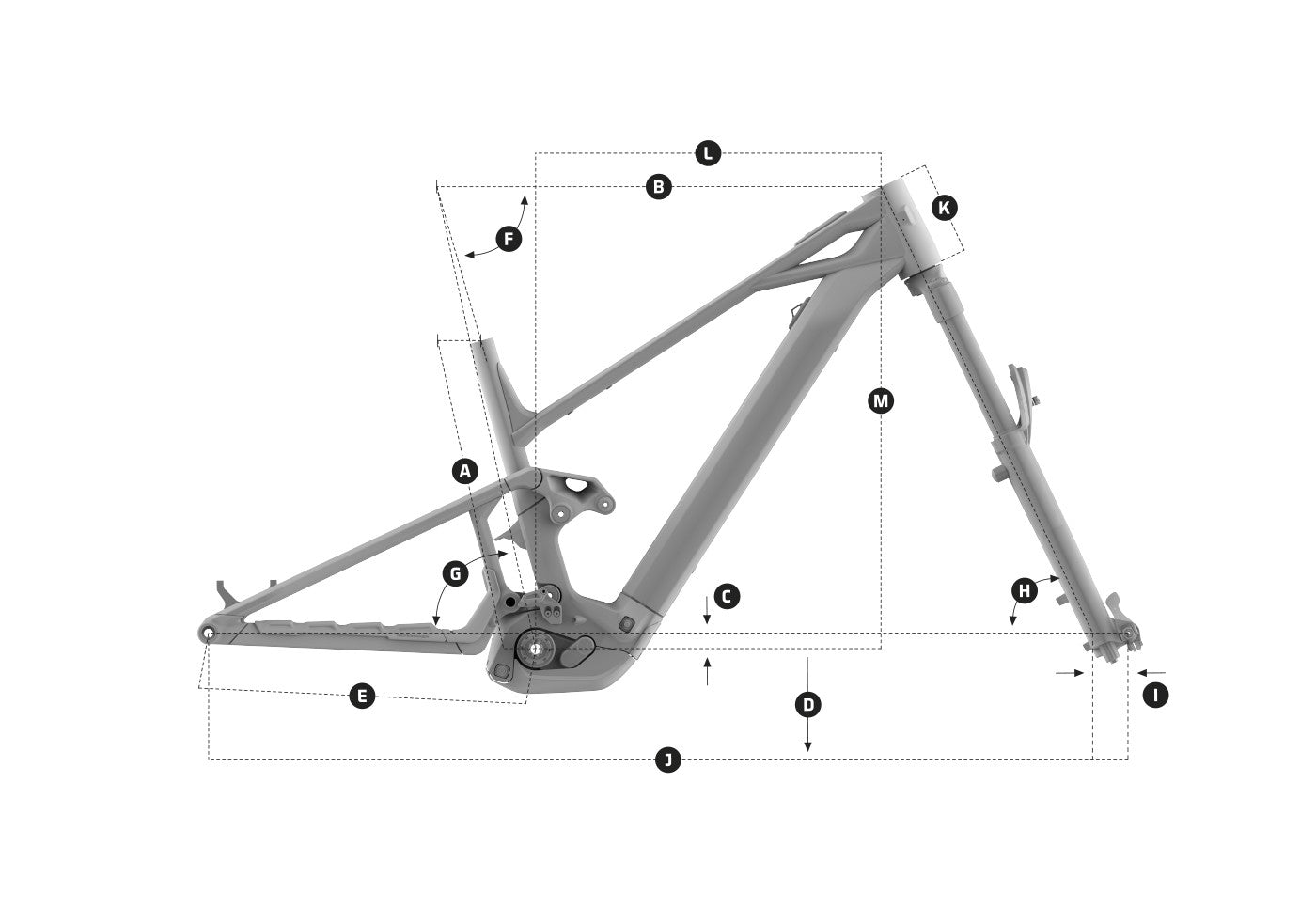

GEOMETRY
Frame size
|
S | M | M/L | L | XL | ||
---|---|---|---|---|---|---|---|
A | Seattube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm | |
B | Toptube length | 595 mm | 615 mm | 635 mm | 660 mm | 685 mm | |
C | Bottom bracket drop | -22 mm | -22 mm | -22 mm | -22 mm | -22 mm | |
D | Bottom bracket height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | |
E | Chainstay length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm | |
F | Seat tube angle | 74º | 74º | 74º | 74º | 74º | |
G | Effective seattube angle | 77º | 77º | 77º | 77º | 77º | |
H | Headtube angle | 64,5º | 64,5º | 64.5º | 64,5º | 64,5º | |
I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | |
J | Wheelbase | 1225 mm | 1250 mm | 1265 mm | 1290 mm | 1315 mm | |
K | Headtube length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm | |
L | Reach | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm | |
M | Stack | 633 mm | 633 mm | 642 mm | 651 mm | 660 mm |
