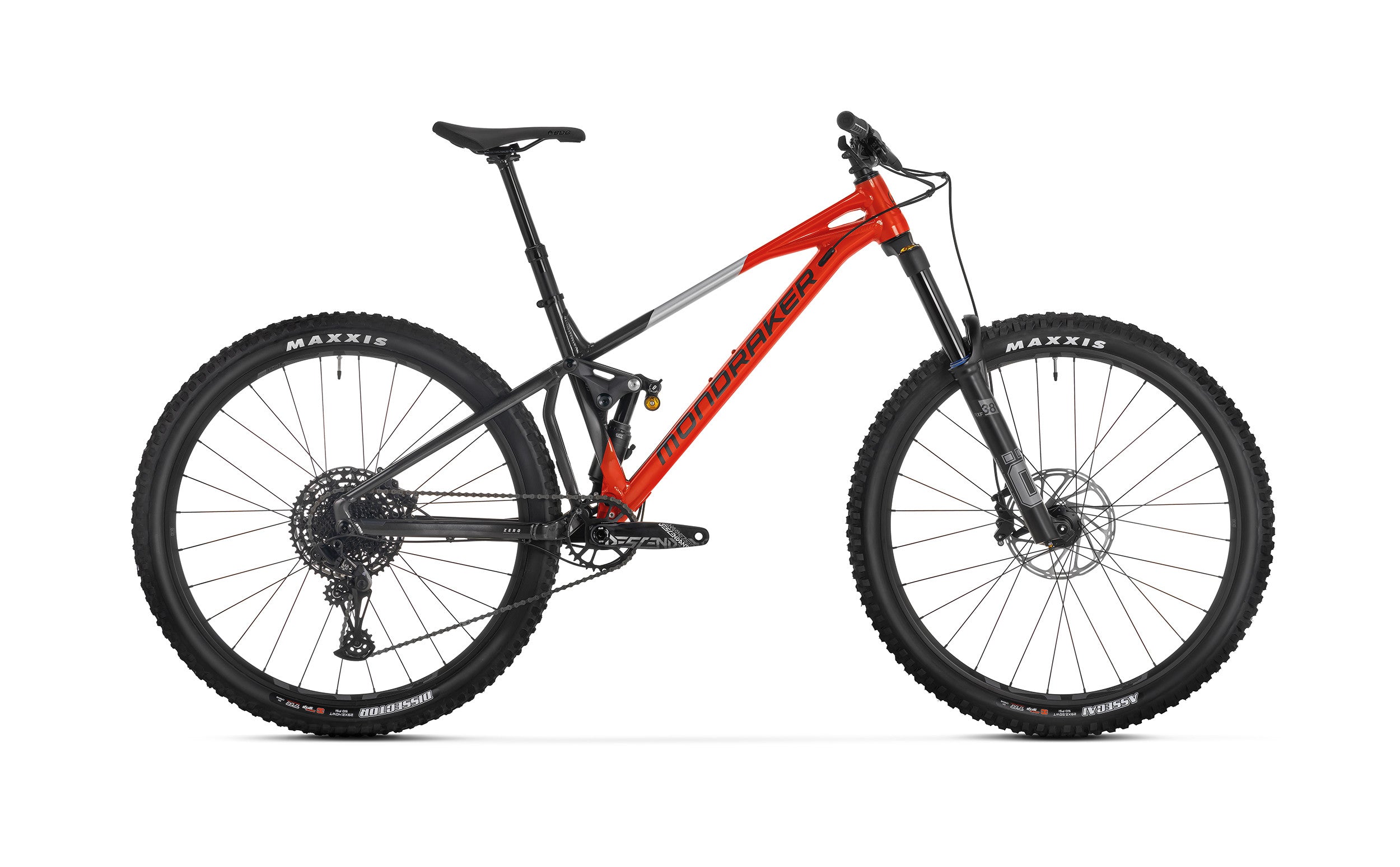

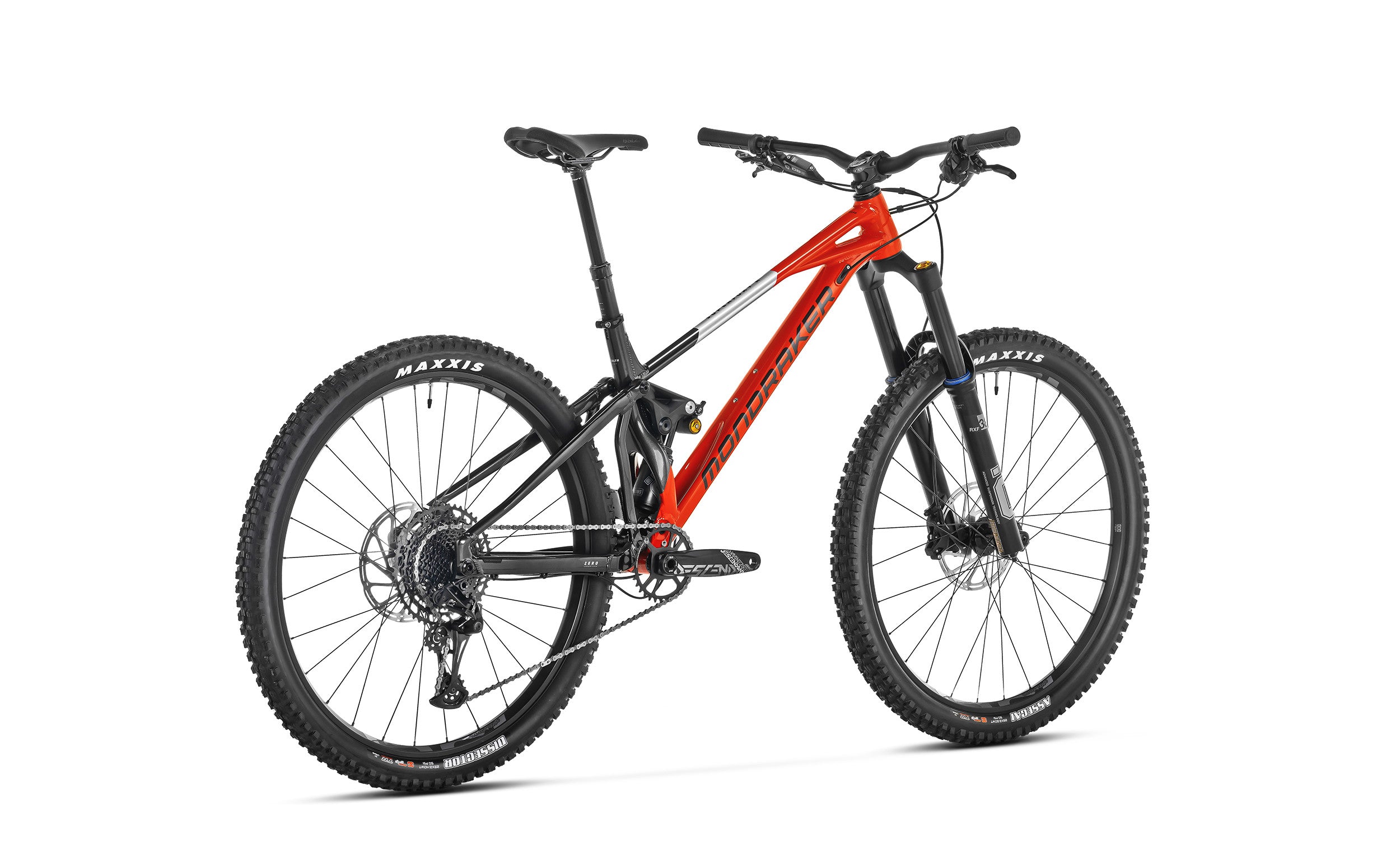

SUPERFOXY R

170MM

160MM

GRAVITY ENDURO / BIKEPARK

Stoic in the face of everything gnar. Ultra refined, and ruthlessly fast. Meet the SuperFoxy. Our ultimate in long-travel enduro capability, at home on the toughest EDR stages in the world or smashing endless bikepark laps. Enjoy 170/160mm of limitless enduro potential.

FORWARD GEOMETRY

LEARN MORE

STEALTH ALLOY

LEARN MORE

ZERO SUSPENSION

LEARN MORE

COMPONENTS

technical specs

Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

REAR SHOCK

Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

SHOCK SETTINGS

C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)

Fork

Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS

Onoff Twin, 1lock-on, 135mm

SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

SADDLE

SDG BEL-AIR 3.0, LPU foam, steel rails

FRONT BRAKE

Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

REAR BRAKE

Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

BRAKE LEVER

Sram DB8, tool reach adjust, lever pivot bushings

RIMS

e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

SPOKES

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

FRONT HUB

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

REAR HUB

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

FRONT TYRE

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

REAR TYRE

Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

CRANKSET

Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5

RINGS

32T, CNC-machined alloy, X-SYNC 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm, superboost

CHAIN

Sram SX Eagle, 12s, Powerlock

REAR DERAILLEUR

Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

SHIFT LEVERS

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

CASSETTE

Sram PG-1230, 11-50T, 12s

DERAILLEUR HANGER

Mondraker M068

WEIGHT

17.2 kg

SUPERFOXY R

SUPERFOXY R

Sale price$9,995.00
Size:S
Colour:Flame Red / Vortex Grey / Racing Silver

Sizing Chart

Sizing Chart

SIZES

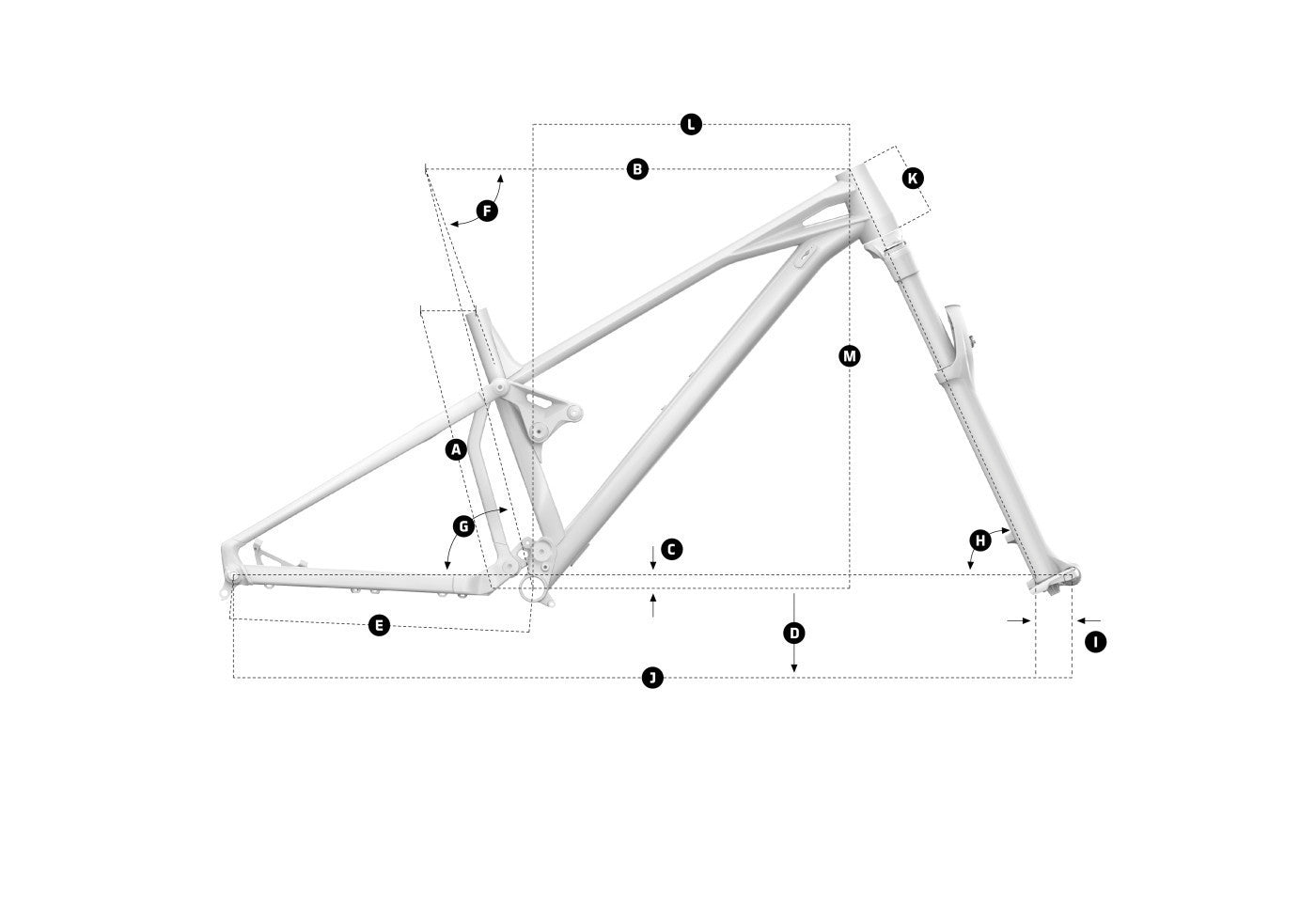

GEOMETRY


FRAME SIZE
S M L XL
A Seattube length 380 mm 420 mm 470mm 510 mm
B Toptube length 605 mm 625 mm 650 mm 670 mm
C Bottom bracket drop -20 mm -20 mm -20 mm -20 mm
D Bottom bracket height 350 mm 350 mm 350 mm 350 mm
E Chainstay length 445 mm 445 mm 445 mm 445 mm
F Seat tube angle 71° 71° 71° 71°
G Effective seattube angle 76° 76° 76° 76°
H Headtube angle 65° 65° 65° 65°
I Fork Offset 44 mm 44 mm 44 mm 44 mm
J Wheelbase 1224 mm 1245 mm 1273 mm 1293 mm
K Headtube length 100 mm 110mm 130 mm 130 mm
L Reach 450 mm 470 mm 490 mm 510 mm
M Stack 621 mm 621 mm 639 mm 639 mm
