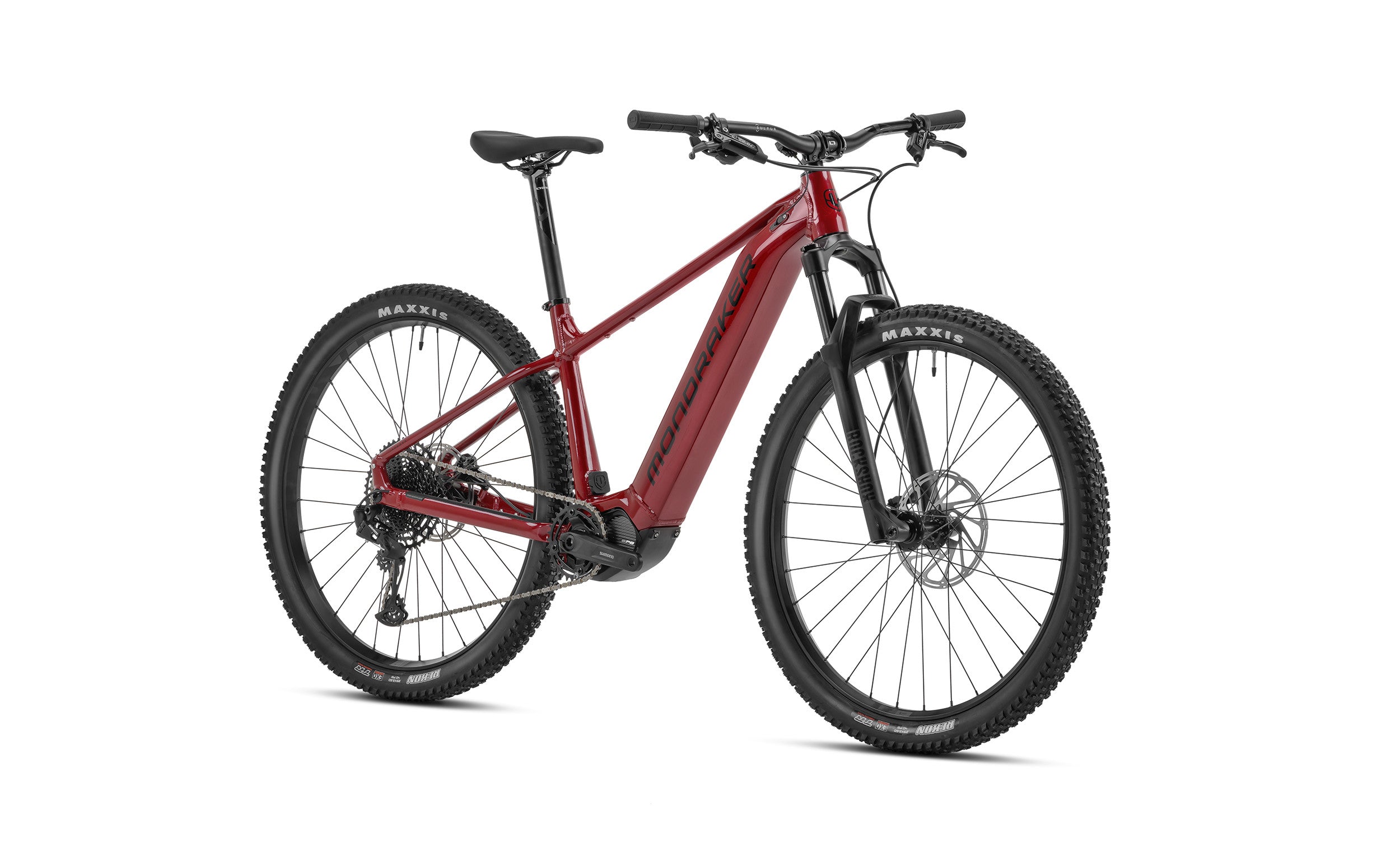

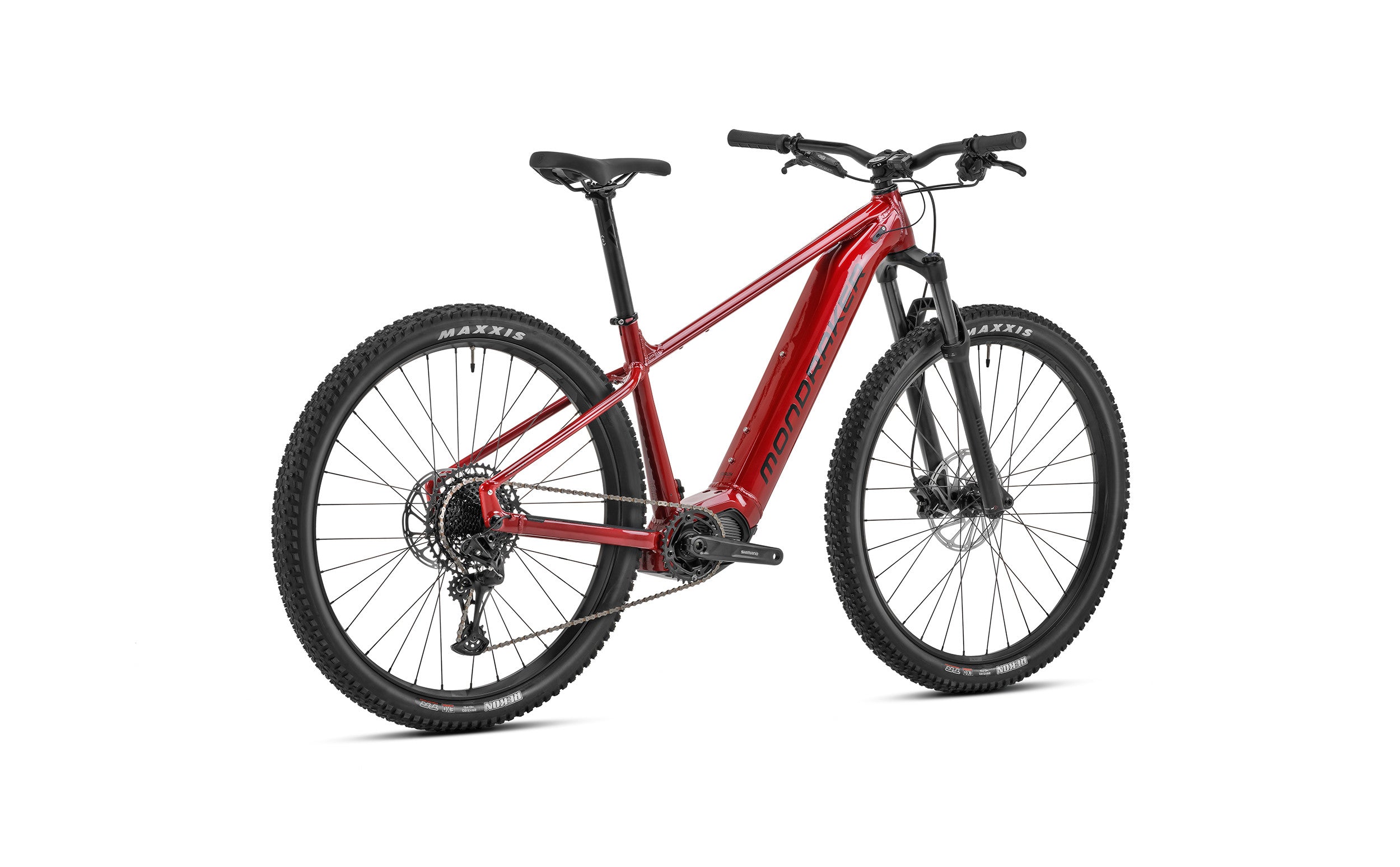

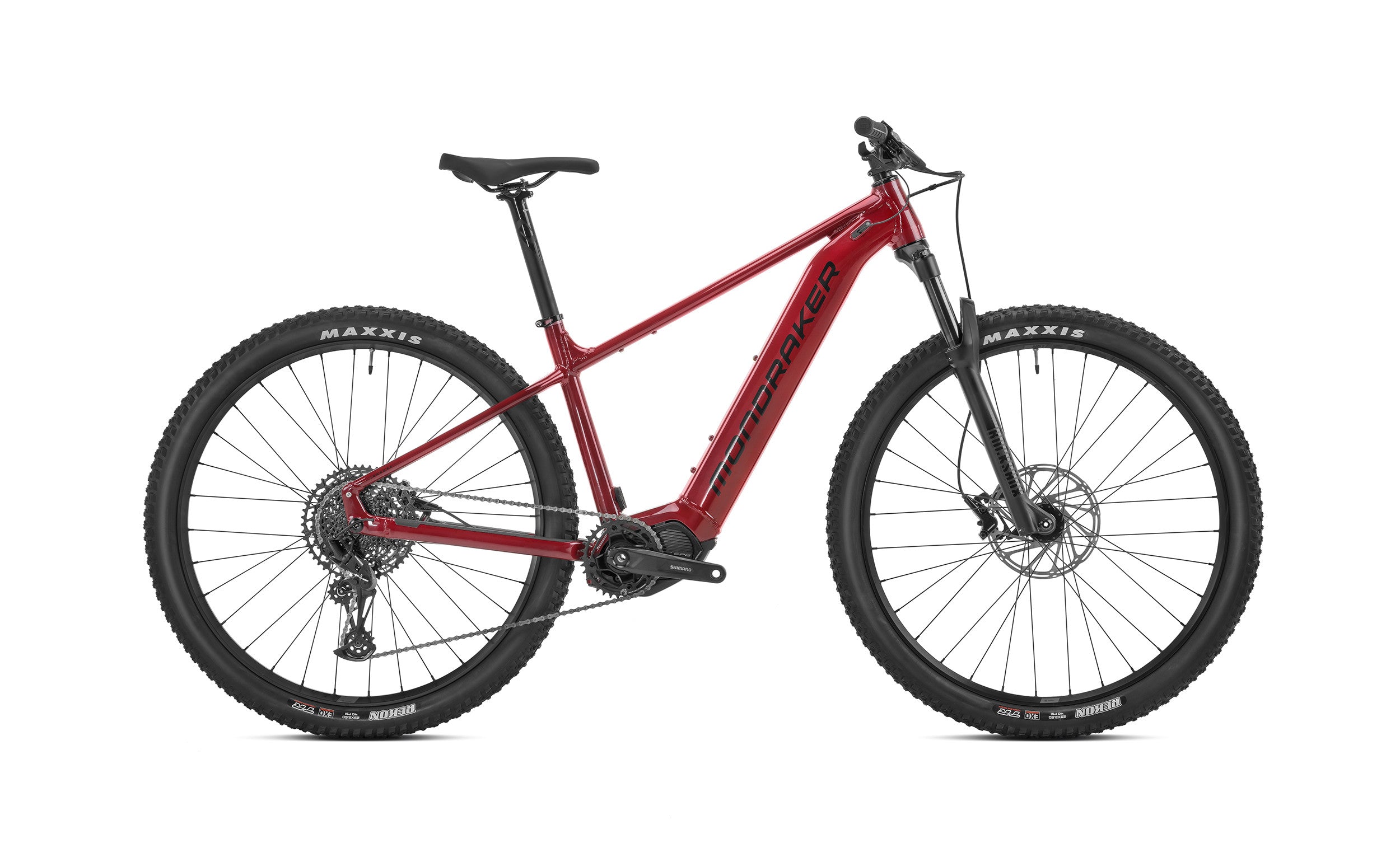

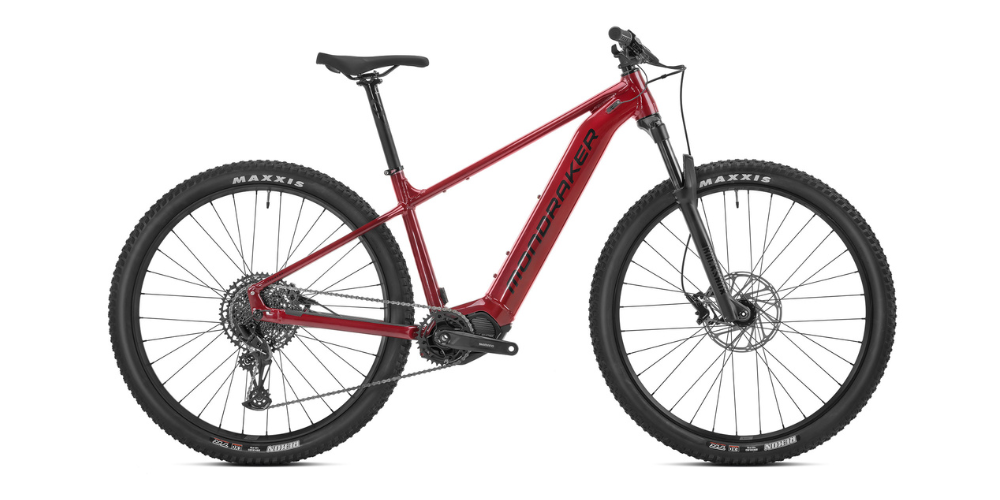

THUNDRA

120MM

TRAIL / HYBRID

Simplicity in exploration. Experience unheard-of levels of range with our ultimate E-adventure hardtail. The 120mm, 29-inch THUNDRA is designed to eat the miles, on and off-road, and can be fitted with an additional range extender giving a gargantuan 1080 Wh of rail trail cruising, singletrack searching power.

FORWARD GEOMETRY

LEARN MORE

STEALTH ALLOY

LEARN MORE

SHIMANO

LEARN MORE

COMPONENTS

technical specs

Frame

Thundra 6061 Xtralite Full Butted Alloy, Forward Geometry, integrated internal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor.*Optional external battery

Sizes

S: 390mm / M: 430mm / L: 470mm / XL: 510mm

Fork

RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41 x 30.2 x 7 x 45º x 45º, bottom 51.9 x 40 x 8 x 45º x 45º

Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS

Onoff Twin, 1lock-on, 135mm

SEATPOST

Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm

SADDLE

MDK ebike black

FRONT BRAKE

Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad

REAR BRAKE

Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

BRAKE LEVER

Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

RIMS

MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes

SPOKES

CN round stainless steel

FRONT HUB

Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

REAR HUB

Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts

FRONT TYRE

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

REAR TYRE

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

CRANKSET

FSA Shimano EP8, 165mm

RINGS

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

CHAIN

Sram SX Eagle, 12s, Powerlock

REAR DERAILLEUR

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

SHIFT LEVERS

Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

CASSETTE

Sram PG-1210, 11-50T, 12s

DERAILLEUR HANGER

Mondraker M068

OTHERS

*Optional external battery: Simplo 360Wh

WEIGHT

22,0 kg

DISPLAY

Shimano EN500

MOTOR

Shimano STEPS EP600

BATTERY

Simplo internal 720Wh

THUNDRA

THUNDRA

Sale price$7,995.00
Colour:Red
Size:S
In Stock

SIZES

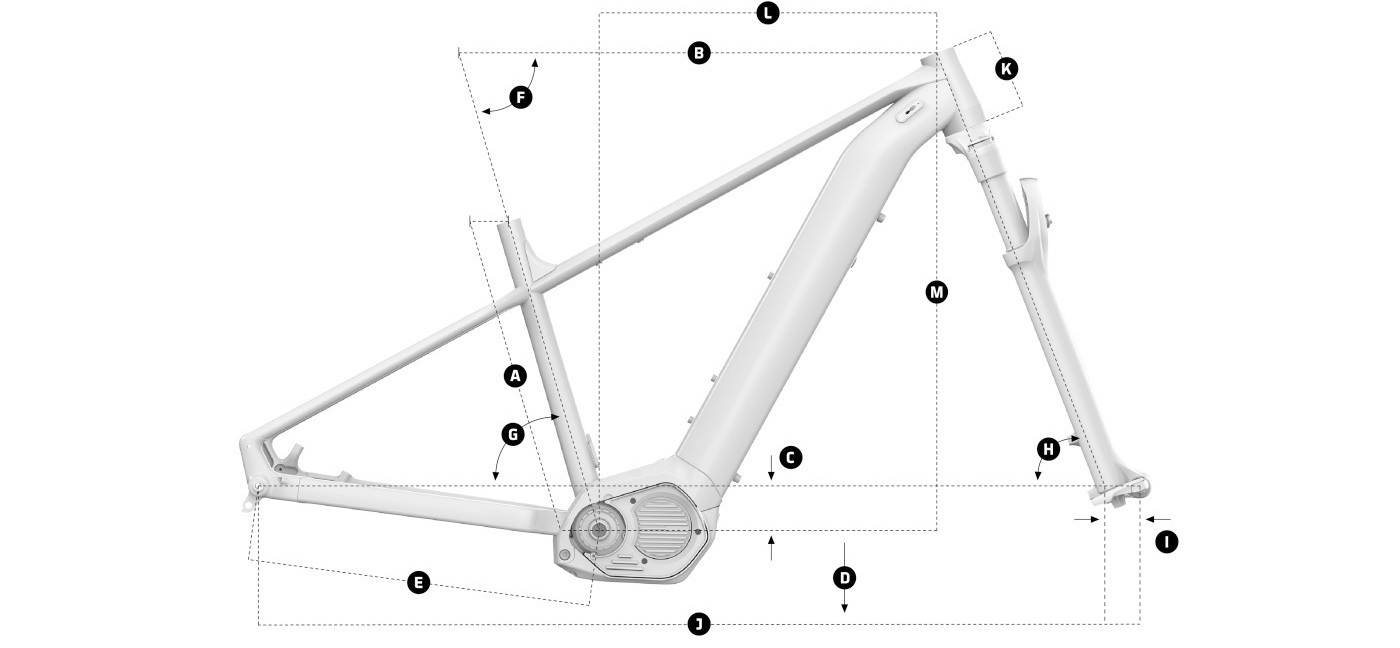

GEOMETRY

  FRAME SIZE XS S M L XL
A Seattube length 380mm 390mm 430mm 470mm 658mm
B Toptube length 600mm 615mm 645mm 670mm 700mm
C Bottom bracket drop 60mm -60mm -60mm -60mm -60mm
D Bottom bracket height 317mm 317mm 317mm 317mm 317mm
E Chainstay length 455mm 455mm 455mm 455mm 455mm
F Seat tube angle 73.5º 73.5º 73.5º 73.5º 73.5º
G Effective seattube angle 73.5º 73.5º 73.5º 73.5º 73.5º
H Headtube angle 69º 69º 69º 69º 69º
I Fork Offset 51mm 51mm 51mm 51mm 51mm
J Wheelbase 1138mm 51mm 1183mm 1210mm 1240mm
K Headtube length 110mm 110mm 110mm 130mm 130mm
L Reach 410mm 425mm 455mm 480mm 505mm
M Stack 640mm 640mm 640mm 658mm 658mm
